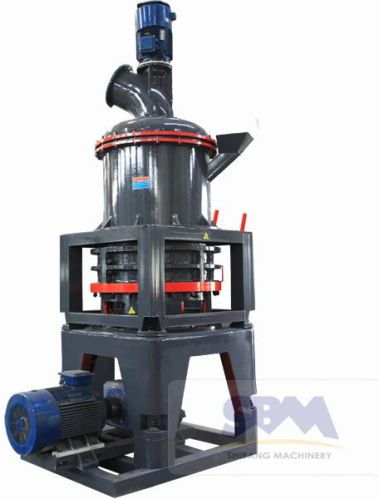

Ultrafine Mill

We are offering sbm hot sale scm series high quality ultrafine mill
scm ultrafine mill product introduction
on the basis of our company’s production experience for decades of years and adoption of the advanced mechanical manufacturing technology from sweden, scm series super-micro mill has been developed into a new type of processing equipment, which produces thin powder and super thin powder. It has been developed by many years and welcomed by thousands of users as its superior performance and stable quality. With the increase of the production batch and added value, it has achieved a prominent economic benefits and now takes a leading role in the grinding industry.
Scm ultrafine mill structure features
1. High output and low energy consumption
2. High fineness and flexible adjustment
3. Safe and reliable
4. Clean and environmental friendly
5. Ce&iso
scm ultrafine mill working principle
1. The main motor drives the main axle and every layer to rotate by reducer. Dail drives numbers of rollers to roll and rotate in the ring by pintles.
2. Big materials are crushed into smaller particles by hammer crusher. Then they are sent to store house by elevator. The electro-magnetic vibrating feeder send the materials evenly to the middle of the upper dial. Under the function of the eccentricity, the materials scatter to the side of the circle and fall into the ring and then they will be pressed, crushed and milled into pieces by rollers. After the first crush, materials fall into the second and the third layer. The pumping of the high-pressure centrifugal blower put the outside air into the machine. The coarse powder will be brought into the classifier.
3. The rotating turbine in the collector makes the coarse particles fall back for regrinding.
