Ultrasonic Flaw Detector

Listing ID #2090216

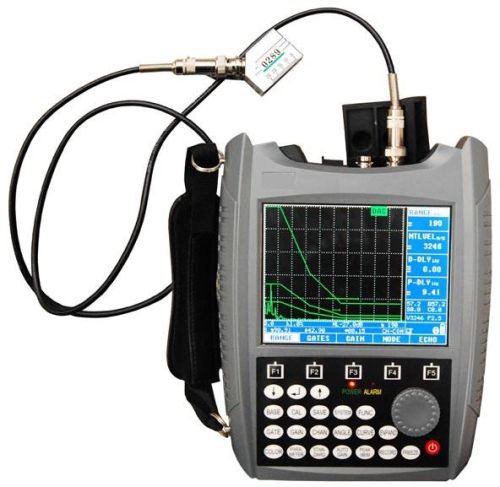

We are offering ultrasonic flaw detector. Sub100 portable digital ultrasonic flaw detector is a economical and practical model . Except for the differences of its measuring range, working frequency and transmitted pulse parameter, the other performances are the same as sub140.
based on ultrasonic pulse reflection testing principle, sub100 controls all testing process by the mini-processor. And it has low power design and can do charge with two models such as online charging and offline charging. And it can work continuously about 8 hours.with large capacity, digital multi-color tft lcd, original imported stable ic, small size, light weight, stable performance and favorable price, sub100 is one of our company�s high promoted super cost performance and economically ultrasonic flaw detector.
range
0~ 6000mm (at steel velocity); range selectable in fixed steps or continuously variable.
Pulser
spike excitation with low, middle and high choices of the pulse energy.
pulse repetition rate: manually adjustable from 10 to 1000 hz.
Pulse width: fixed,nonadjustable
damping: 100î©, 150î©,200î©, 400î© selectable to meet different resolution and sensitivity need.
Probe work mode: single element, dual element and through transmission;
receiver
real-time sampling at 100mhz high speed enough to record the defect information.
Rectification: positive half wave, negative halfwave, full wave, and rf
db step: 0db, 0.1 db, 2db, 6db step value as well as auto-gain mode
alarm
alarm with sound and light,.
