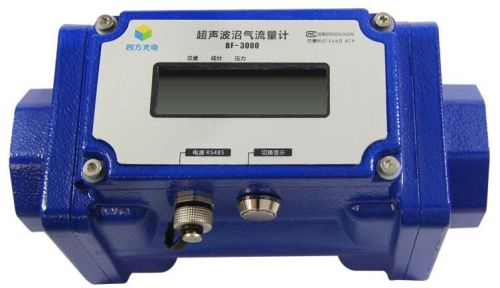

Ultrasonic Gas Flow Meter BF-3000

The BF-3000 ultrasonic gas flow meter has been specially developed for the biogas industry. It measures the volume flow of biogas, landfill or digester gas with high accuracy, even under wet and corrosive conditions. In addition the bf-3000 provides methane content measurement. This unique feature enables continuous measurement of not only gas flow rate but also gas quality.
Features:
1. No moving parts, little pressure loss.
2. Unique methane content measurement function.
3. Ease-to-install, routine maintenance free.
4. Ic card prepaid and meter reading features are available.
5. Built in gprs function module supports remote meter reading and control.
6. Remote biogas scada system support is available.
Specifications:
1. Flow range: 0 ~ 3200 cubic meterhour (dn32-dn300)
2. Accuracy: less than or equal to 1.5%
3. Ch4 measurement range: 30-100%, accuracy: +5% or -5%
4. Working temperature: -10 ~ 40 degrees centigrade
5. Working pressure: 0- 400kpa
6. Explosion-proof grade: ex ibiiat4
7. Ip grade: ip65
Place of origin: china
Brand: cubic
Port: fob wuhan
Payment terms: lc;tt
Delivery time: 20 days
Min order quantity: 1 unit
