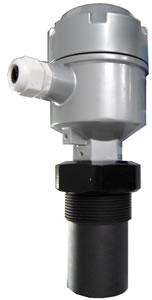

Ultrasonic Level Meter

₹ 32,489.50 / 460 460 Piece

MOQ10 Piece(s)
Measurement Range40m
Display4LCD
Supply TypeManufacturer
Preferred Buyer Location All over the world

Ultrasonic level meter display: 4 lcd display output current: 4~20ma output load: ≤ 500ω output resolution: 0.03% parameter setting: 3 touched buttons working temperature:....

Company Information

Xi'an Shengren Electromechanical Technology Co., Ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Ultrasonic level meter
display: 4 lcd display
output current: 4~20ma
output load: ≤ 500ω
output resolution: 0.03%
parameter setting: 3 touched buttons
working temperature: -40~80c
temperature compensation: automatically during the process
working pressure: ± 0.1mpa
input power: dc24v± 20%
cable diameter: 6~12mm
single wire diameter: 0.5~1.78mm
sound beam angle: 8(3db) 468, 5(3db) 8a10
testing period: 1-3seconds adjustable
sensor material: pvc
protection: ip65
installation: thread flange
probe length: 20cm or customized(cold area optional)
flange standard(sealed container): ul4. Ul6. Ul8 minimum inner diameter 65mm(dn65)ul8a, ul810: minimum inner diameter 80mm(dn80)pipe connecting should be less than 150mm.
For any question, plz feel free to let us know.
