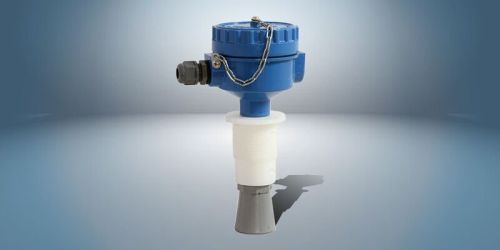

Ultrasonic Level Transmitter

Listing ID #1431143

Get Latest Price

Temperature0 to 65 deg C
CommuncationRS 485 – Modbus
Accuracy0.5% of FSD
Resolution1mm, 5mm or 10mm depending on models
Supply Type Manufacturer, Exporter, Supplier, Distributor, Trader

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Temperature 0 to 65 deg C
“ Display ” 8 x 2 alphanumeric displya, “ 7 segment LED ”
Analog output (Programmable) 4 – 20mA 20 – 4 mA 0 – 10 V DC 10 – 0 V DC
Minimum distance 40mm to 300mm depending on range
Accuracy 0.5% of FSD
Communcation RS 485 – Modbus
Process connections ½” BSP, 1 ½” BSP
Electrical connections PG 9 one gland, 2 numbers
Updation time 150 mS max
Sensor face Anodised aluminium
Temperature compensation Inbuilt
Display Filter None / Low / Medium / High
Input Supply 24V DC
Mode Distance OR height measurement
Electronics Housing Stainless Steel or die cast aluminium, flame proof
Sensor body PVC
Resolution 1mm, 5mm or 10mm depending on models
Measuring range 5mtr, 10mtr 0.5mtr, 1 mtr, 3.5 mtr
Applications Liquids including hazardous but non-corrosive medium
Voltage Variations Internal calibration and automatic compensation

Specifications

Electronics Housing	Stainless Steel or die cast aluminium, flame proof
Temperature	0 to 65 deg C
Applications	Liquids including hazardous but non-corrosive medium
Input Supply	12V/24 V DC
Analog output (Programmable)	4 – 20mA 20 – 4 mA 3) 0 – 20mA 4) 20 – 0 mA
Mode	Distance OR height measurement
LCD Screen	8 x 2 alphanumeric displya, green or blue screen
Communcation	RS 485 – Modbus
Measuring range	1) 5m 2) 10m
Resolution	5mm or 10 mm depending on models
Accuracy	0.5% of FSD
Updation time	150 mS max
Minimum distance	300 mm
Display Filter	None / Low / Medium / High
Temperature compensation	Inbuilt
Voltage Variations	Internal calibration and automatic compensation
Process connections	3 inch flange Threaded lock nut – Customised
Electrical connections	PG 9 one gland, 2 numbers
Sensor face	Anodised aluminium
Sensor body	PVC

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Founded in the year 2002 and headquartered in Bangalore India, Filpro Sensors Private Limited is a technology and solution providing company in field of level sensing devices. We offer products and end to end solutions in level sensing requirements for business segments which includes Building automation, chemical, machine tool industry, pharmaceutical, process and petrochemical industries. In the year 2011 our company was certified by Nqa.UKAS for BS EN ISO 9001-2008 standards for implementation of Quality management system.
Our Specialization :
The company is specialized in providing cost effective and customized solutions to meet customer specific requirements. We focus on the areas, like process industries, maintenance, projects and original equipment manufacturers to provide hassle free solutions to our clients. We have successfully risen to the challenges imposed by changing market scenario. Our infrastructure covering an area of 2500 sq feet is fully capable to focus on customer specific and premium quality products. We also undertake turnkey projects in liquid level management.
Quality Assurance :
We provide high quality products, which we test at every stage of the production process. We manufacture our products from fine quality raw material, which we procure from reliable sources. We supply our products by using high quality packaging material to maintain the standard of the products. We believe in maintaining long term relationship with our clients by providing only quality products within the committed time-frame.
Area Of Application :
Machine Tool
Hydraulic
Pharmaceutical
Chemical
Food & Breweries
Cement & Steel
Industrial & Building Automation
