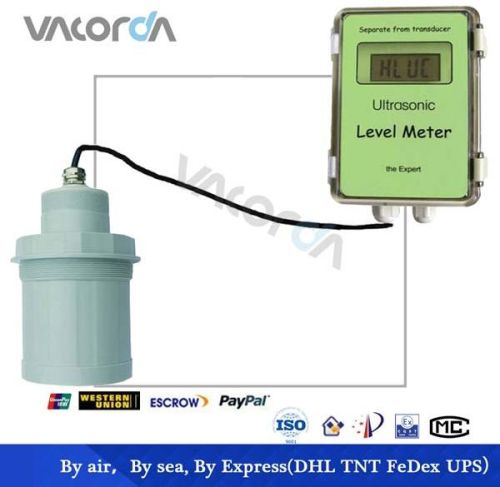

| Model | HBLS |
| Accuracy | 0.2% Full Spain(in air) |
| Display | 4 Digit LCD or 6 Digit LED |
| Output current | 4~20mA |
| Output load | 0~500Ω |
| Output resolution ratio | 0.03% full span |
| Serial communication | RS485(modbux standard protocol) |
| Baud rate | 19200/9600/4800 |
| Relays quantity | 2(high low) |
| Relays data | 5A 250VAC/30VDC |
| Parameter set up | 3 induction buttons |
| Temperature Range | -40 |
| Temperature compensation | The whole range is automatic |
| Power supply | AC85~265v 50mA DC24V ±10% 0.1 |
| Cable Fix | PG13.5 |
| Measure Cycle | 1 second |
| Crust Material | ABS |
| Dimension | 170×100×70mm |
| Fix | Hang |
| Range | LA-4:0.20~4m; LA-6:0.25~6m; LA-8:0.30~8m LA-12:0.45~12m; LA-15:0.6~15m; LA-20:0.8~20m LA-30:1.40~30m; LA-40:1.60~40 |
| Temperature range | -40oC~+75oC |
| Temperature compensation | The whole range is automatic |
| Pressure range | ±0.1MPa |
| Beam angle | 8o, 5o (3db) |
| Measure cycle | 1 second |
| Crust material | ABS |
| Sensor material | ABS/PVC/PTFE |
| The length of cable | 10m(standard), no more than 1000m |
| IP grade | IP68 |
| Mode installation | thread, flange |
