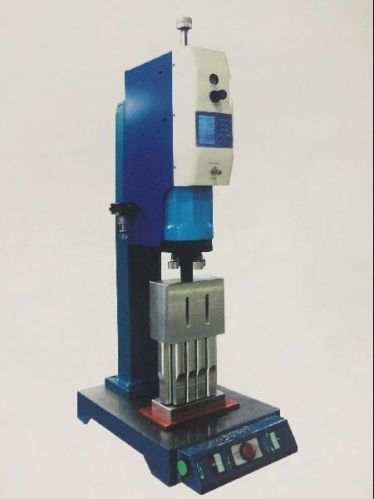

Ultrasonic Plastic Welder

₹ 90,000 / 3000 3000 Set

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Type in-2015j in-2020j in-1522j in-1526j output power 1500w 2000w 2200w 2600w frequency 20khz 20khz 15khz 15khz input voltage 220vac 220vac 220vac 220vac head route of travel 75mm....

Company Information

Shanghai Intop Ultrasonic Equipment Co Ltd

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 1997

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Type in-2015j in-2020j in-1522j in-1526j
output power 1500w 2000w 2200w 2600w
frequency 20khz 20khz 15khz 15khz
input voltage 220vac 220vac 220vac 220vac
head route of travel 75mm 75mm 75mm 75mm
welding time 0.01-9.99sec 0.01-9.99sec 0.01-9.99sec 0.01-9.99sec
air pressure 0.1-0.7mpa 0.1-0.7mpa 0.1-0.7mpa 0.1-0.7mpa
cooling system air cooling air cooling air cooling air cooling
welding area(mm) &170 &190 &200 &220
dimension(mm) 540*400*1050 540*400*1050 540*400*1050 540*400*1050
460*475*170 460*475*170 460*475*170 460*475*170
net weight(kg) 130kg 90kg 92kg 95kg.
