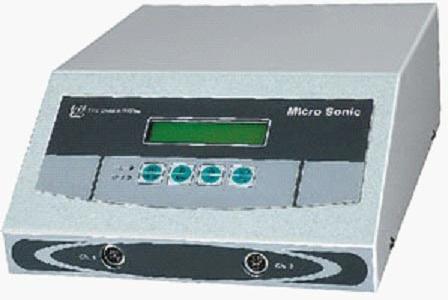

Ultrasonic Therapy Unit

Supply TypeExporter, Supplier, Retailer
Preferred Buyer Location All over the world

micro-controller based ultrasonic therapy unit designed as per the set medical parameters. The ultrasonic therapy unit comes with dual transducer each of 1mhz. Our ultrasonic therapy unit, offered by us, has become the demand of the medical field for giving the desired therapy using ultrasonic waves. applications : ultrasonic waves are useful for treatment of inflammation of elbow joint (tennis elbow)plantar fasciitis (heel pain)shortening of muscle or ligamentinflammation of tendons (suprass pinatus tendonitis)ligament sprain (lateral ligament sprain of ankle)unhealed scars

View More Details

Send Enquiry

Specifications

Dimension (lhd)	197mm, 100mm, 265mm
Weight	3.6 Kg. Approx.
Operating Voltage	220V AC, 50Hz
Ultrasound Frequency	1 MHz
Display	16 X 2 LCD Backlit
Max. Output in Cont. Mode	2w/cm2 or 15W
Max. Output in Pulse Mode	3w/cm2 or 21W
Pulse Repetition Rate (pulse Frequency)	50 & 100 Hz
Pulse Temporal-peak (average Ratio)	Duty Cycle 1:2, 1:4, 1:8, 1:16
Treatment Time	20 Minutes Maximum
Transducer	Visual Head Identification (CH-1, CH-2) Ergonomic Head with Diameter 4.25 cm & 0.9 cm 1 MHz
