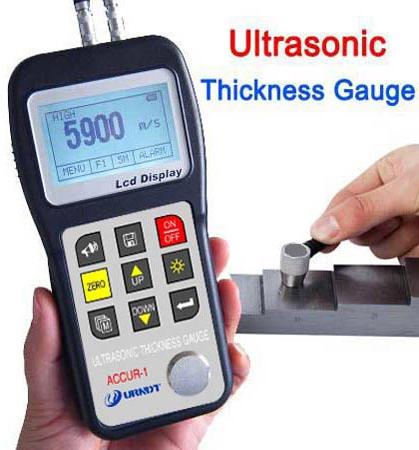

Ultrasonic Thickness Gauge, Display Type : Digital

Supply TypeSupplier
Preferred Buyer Location All over the world

Ultrasonic Thickness Gauge that we offer is manufactured and tested using the latest techniques with the objective of eliminating each and every possibility of defect. We are counted among the top Manufacturers and Suppliers of Ultrasonic Thickness Gauge. Our well-equipped production unit has enabled us to produce Ultrasonic Thickness Gauge in bulk at a time. Few words that better describe our gauge are strong in construction, corrosion resistant and dimensionally accurate.

View More Details

Send Enquiry

Product Details

Specifications

Measuring Range	0.75mm~300.0mm(0.03inch~11.8inch)
Units	Metric/Imperial unit selectable
Sound Velocity Range	1000m/s~9999m/s (0.039~0.394in/μs
Display resolution	0.01mm or 0.1mm (lower than 100.0mm), 0.1mm (more than 99.99mm)
Accuracy	+/-(0.5%Thickness+0.04)mm, (depends on Materials and conditions)
Data Memory	5 files(up to 100 values for each file)of stored values, 5 Sound Velocity of stored values
Power Source	2pcs 1.5V AA size,batteries.250 hours typical operating time(LED backlight off)
Outline Dimensions	150mm74mm32mm
Workpiece surface temperature	10 ~ 60
The minimum thickness value capture capacity	With a minimum thickness value capture capacity
Measurement cycle	4 times/SEC, scanning of single point measurement model 20 times per second.
Weight	238 g
Power source	Type AA alkaline battery 1.5 V (2)
