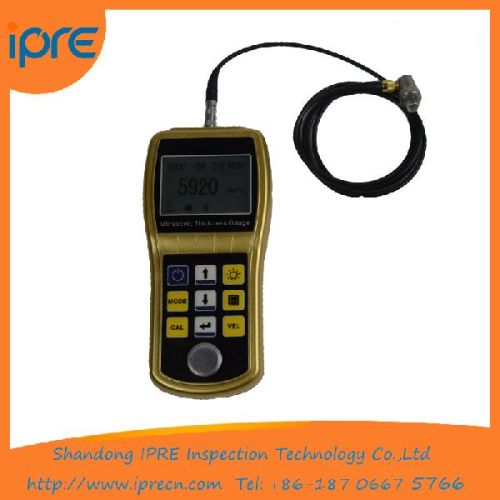

Ultrasonic Thickness Gauge, Brand Name : IPRE

MOQ1 Set(s)
Brand NameIPRE
Powerelectronic
Applicationtest the thickness of thin workpiece
Measuring Range0.15mm-25.4mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

SHANDONG IPRE INSPECTION TECHNOLOGY Co Ltd

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2008

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameIPRE
Applicationtest the thickness of thin workpiece
Powerelectronic
Measuring Range0.15mm-25.4mm
Display128*64 LCD，LED backlighted
Country of OriginWeifang
Measuring ModeI-E; E-E
Transducer frequency15MHz, 20MHz
Accuracy0.005mm
Resolution0.001mm
Power supply3x1.5V AAA Batteries
Transducer Diameter15P ￠6
Velocity1000-9999m/s
Model NumberUT600

Main Technical Specifications
Resolution 0.001mm
Accuracy 0.005mm
Measuring Mode I-E; E-E
Measuring Range 0.15mm-25.4mm
Transducer frequency 15MHz, 20MHz
Transducer Diameter 15P ï¿ 6
Velocity 1000-9999m/s
Display 128*64 LCDï¼�LED backlighted
Power supply 3x1.5V AAA Batteries
Dimensions in mm 155x68x27
Weight 230g
Standard Delivery
Main Unit 1 pc
Transducer (15Pï¿ 6) 1 pc
Manual 1 pc
Packing list 1pc
Couplant 1 bottle
Advantagesï¼�
1. Capable of inspecting super-thin work piece (min. thickness of steel is 0.15mm)
2.Ability to measure through paint and eliminate the thickness of paint and coatings using echo to echo time of flying technology
3.2 modes optional: Echo-Echo mode and Interface-Echo mode.
4. USB 2.0 interface for data output.
5.500 groups of data memory.
6.CMC certificate.
7.High precision, the acquisition of thickness change of 1â�° mm.
8.Digital LCD display(1.8 inchÃ�1.2inch) with backlight
9.Dimensions in inchï¼�6.1x2.7 x1.1
