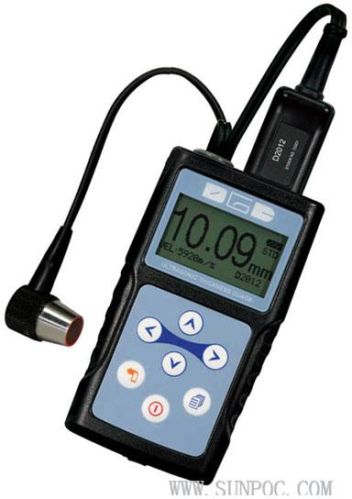

Ultrasonic Thickness Gauge, Application : Measuring Material Thickness

We are offering ultrasonic thickness gauge.
capable of performing measurements on a wide range of material.
four transducer models.
probe-zero function, sound-velocity-calibration function.
two-point calibration function.
two work modes: single point mode and scan mode.
coupling status indicator showing the coupling status.
auto sleep and auto power off function to conserve battery life.
option software to process the memory data on the pc.
option mini-printer to print the measured data via rs232 port.
specification list:
display�
128ã�64 dot matrix lcd with el backlight.
measuring range�
0.75�300mm (in steel).
soundvelocity range:
1000~9999 m/s.
resolution�
0.1/0.01mm�selectable�.
accuracy�
â±ï¼�0.5%thickness+0.04ï¼�mm
units:
metric/english unit selectable.
measuring circle
four measurements readings per second for single point measurement, and ten per second for scan mode.
memory
memory for 20 files (up to 99 values for each file) of stored values.
alarm function:
upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit.
power supply�
two �aa� size, 1.5 volt alkaline batteries. 100 hours typical operating time (el backlight off).
communication�
rs232 serial port.
case�
extruded aluminum body suitable for use under poor working conditions.
outline dimensions�
132ã�76ã�40 mm.
weight�
345g
packing list:
�
no
item
quantity
note
standard configuration
1
main body sut-200
1
�
2
transducer
1
3
couplant bottle
1
�
4
instrument case
1
�
5
screwdriver
1
�
6
alkaline battery
2
aa size
7
operating manual
1
�
8
warranty card
1
�
optional configuration
9
transducer: n02
�
10
transducer: n07
11
transducer: ht5
12
mini printer
1
�
13
print cable
1
�
14
datapro for thickness gauge
1
for use on the pc
15
communication cable
1
�.
