Application:
Used for Measuring Thickness and Corrosion of Pressure Vessels,Chemical Equipment,Boilers,Oil Storage Tanks,Etc.in Industries of Petroleum,Shipbuilding,Power Station,And Machine Manufacturing.

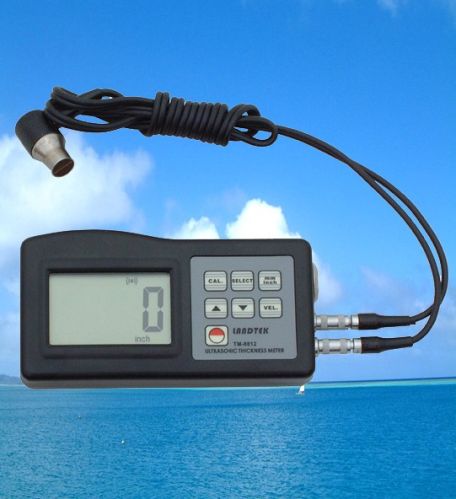

model: Tm8812 Tm8812c
measuring Range (metric/imperial): 1.0-200mm,0.05-8inch
operating Principle: Ultrosonic
materials Measured: Any Hard Materials, Including Steel, Cast Iron, Aluminum, Red Copper, Brass, Zinc, Quartz Glass, Polyethylene, Pvc, Gray Cast Iron, Nodular Cast Iron and other Materials
sound Velocity: 500-9000m/s
lower Limit Steel Pipes: Φ15x2.0mm, Φ20x3.0mm Determined By the Transducer
calibration Block: Included
resolution: 0.1mm(tm8812c 0.01mm)
accuracy: ±(0.5%n+0.1)
rs232c Interface: with Rs232c
power Supply: 4x1.5v Aaa (um-4)battery
battery Indicator: Low Battery Indicator
operating Conditions:0-+45°c(32°f-104°f),≤90%rh
dimensions: 120x62x30mm
weight: 164g(not Including Battery)
optional Accessories:
6mφ6mm Thin Material Probe:measuring Range(steel): 1.0 50.0mm Operating Temperature: -10~+60°c
5mφ12high Temperature Probe: Measuring Range(steel): 1.0~225.0mm(normal Temperature) Measuring Range(steel): 4.0~100.0mm (high Temperature) Operating Temperature: -10~+300°c
