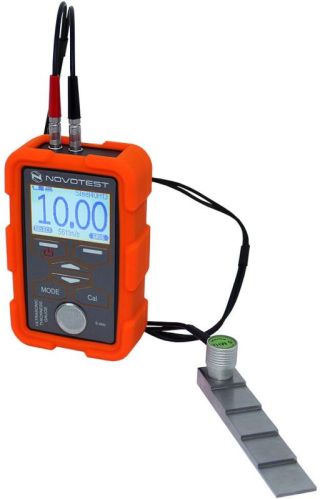

Ultrasonic Thickness Gauge UT-1M (Lab), Operating Temperature : -20 To +40

₹ 76,030 / piece

MaterialPlastic, with shockproof silicone case / Standard for shop and field operation
Automatic GradeAutomatic
Brand NameNovotest
Operating Temperature-20 to +40
Supply TypeManufacturer, Exporter, Supplier, Distributor
Preferred Buyer Location All over the world

Company Information

4.0/5

Member Since 8 Years
Nature of Business Retailer
GST No. 27AAQFP0170N1ZR

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameNovotest
MaterialPlastic, with shockproof silicone case / Standard for shop and field operation
ShapeSquare
ConditionNew
Automatic GradeAutomatic
FeatureEasy To Fit
Operating Temperature-20 to +40
Number Of FlowerUltrasonic Thickness Gauge
DisplayDigital, Monochrome, 2,5 inch, 128*64
Number Of Batteries2pcs standard АА batteries

Ultrasonic Thickness Gauge NOVOTEST UT-1M is used for operational non-destructive testing of the thickness of products with one-way access, at the moment this method is the most common in the world for solving such tasks.

The method is based on the property of materials to conduct ultrasound, ultrasonic wawes are excited with the piezoceramic plate in the transducer and penetrates into the material through the couplant, then reflected from the bottom surface of the tested sample, and returns to the transducer. Based on the obtained sound transit time in the material, the device calculates the thickness in accordance with the velocity of propagation of ultrasonic waves in the test sample. The thickness value is displayed on the device’s display, the measurement process takes about 1 second.
