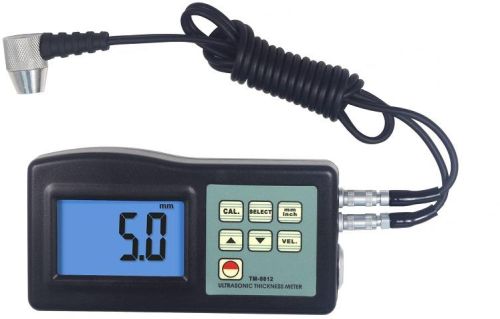

Ultrasonic Thickness Meter TM-8812, Brand Name : Realltech

Ultrasonic Thickness Meter TM-8812

1.Spec:

Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

2.Features:

* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.

* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

3.Specifications:

Display: LCD

Sensor: Ultrasonic Probe

Measuring Range: 1.2~200mm/0.05~8 inch

Resolution: 0.1

Accuracy: ±(0.5%n+0.1)

Sound Velocity: 1000~9,000 m/s

Lower Limit of Pipes: Φ15x2.0mm Φ20x3.0(Determined By Transducer)

Operating Conditions: Temperature: 0~40ºC; Humidity:
