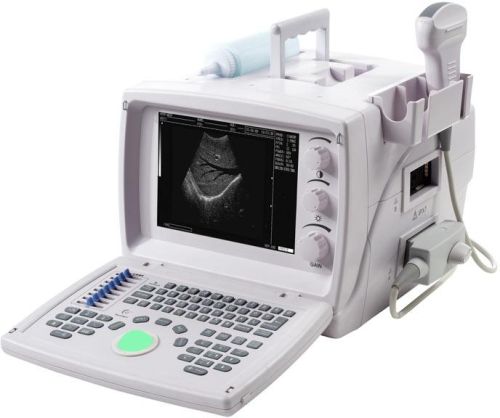

Ultrasound Diagnostic System

We are offering ultrasound diagnostic system.
features
1 application of full digital ultrasonic imaging techniques
2 back-light,radium carved buttons or silicon gel keyboard as optional
3 10 inch monitor with clear view image
4 2 probe connectors for easy probe connection
5 power ac 165v-265v eliminates need of stabilizer
6 abundant measurement and calculation software for abdomen,gyn,ob,cardiac,urology and small parts
7 optional workstation software is available,with the work station software,device could be operated via pc
specification
probe type electronic convex, micro-convex and linear array
monitor 10* black & white svga progressive scanning display
probe connector 2
scan mode b, bb, bm. M
display depth 240mm
image processing updown, leftright, blackwhite
edge enhancement
frame correlation
y correlative
image zoom ×0.8, ×1.0, ×1.5, ×1.8, ×2.0
cine loop 256 frames
image storage permanent storage of 128 frames
body mark 30
display information date, time, medical records number, magnification, measurement value, the body tag, character notes, coefficient of frame correlation, scanning depth, character edit etc, portfolio of probe type, full-screen
measuring & applications distance, area, circumference, volume, angel, time, velocity, hr, etc
tgc control 8 tgc adjustment
video output vga, pal-d video output
net weight 6.5 kgs.
