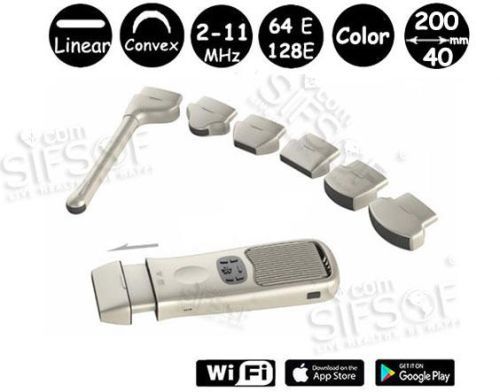

Ultrasound Transducer

Comes with only one of these heads :
1. Convex – 3.2 mhz r50
2. Convex – 3.3 mhz r50
3. Linear – 7.5 mhz l40
4. Micro convex – 6.5 mhz r15
5. Linear – 7.5 mhz l25
6. Transvaginal – 6.5 mhz r10
technical specifications :
- transducer frequency : 2-11mhz linear
- convex 64 elements - 128 elements
-depth : 40mm ~ 200 mm
-platform : android, window modes : b, b&m, 2b, 4b
-gray level : 256
-transducer frequency : 2-11mhz
-max scanning depth : 310mm
- map leftright reverse updown reverse
-wifi connect to any android or window system xp. 7. 8. 10
- cine-loop : based on the memory of the android or windows device.
- zoom : max 10 times
b mode : distance, angle, area, volume, trace length, distance ratio, area ratio, histogram
m mode : distance, time, slope, heart rate color power pw mode : d velocity, d trace, psed
application package : abdomen, small parts, vascular, obstetrics, gynecology, cardiology, neurology,urology, orthopedics, anesthesia, others.
- power supply : 12v 1.5a
-battery lifetime : 6-8 hours
-net weight : 365g
- waterproof level : ipx6
-multiple frequency probes
- convex probe
-probe main host (17cm*5.8cm*2.4cm)
