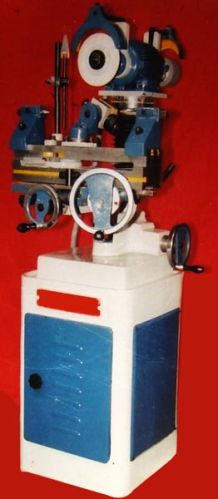

UMTC Lathes Tool Cutting Grinder (Model-600)

Brand NameUMTC Lathes
ConditionNew
Number Of FlowerTool Cutting Grinder
Country of OriginLudhiana
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We offer power saving and low maintenance Tool Cutting Grinder (Model-600), throughout India. We are one of the leading Tool Cutting Grinder manufacturer, exporter & Supplier. We offer precision engineered Tool Cutting Grinder that is fabricated with the highest level of perfection.

View More Details

Send Enquiry

Product Details

Technical Specifications

Admit Between Centres	16"	400mm
Swing Over Table	10" die	250mm
Table Dimensions	24" x 6"	600 x 150mm
Longitudinal Travers	10"	250mm
Cross Travers	6"	150mm
T-Slot Width	1/2"	12.5mm
Table Top to Grinding Spindle Centre Maximum	12"	200mm
Table Top to Grinding Spindle Centre Minimum	4"	75mm
Pillar	3½" x 18"	75 x 450mm
Table Swivel	-	-
Clock Wise	90^o	90^o
Anti Clock Wise	45^o	45^o
Motor Head Swivel	30^o	360^o
Motor (3440V)	1 H.P.	1 H.P.
Motor R.P.M.	2800	2800
Height of Cabinet Base	5½ ft.	1500mm
Weight ( Approximate)	500kg	500kg

Standard Equipments

Universal Work Hard	Simple
Set Of Centre Head With Centre	Simple
Lathe Tool Grinding Attachment	Universal 360^o
Universal Tooth Rest	360^o
Wheel Dresser Attachment	Simple
Dresser Attachment	Simple
Tool Kit	One
Adapter Nut Spanner	One
Pressure Oil Can	One
	One
L/ Key 5/32"	One
L/ Key 3/16"	One
L/ Key 7/32"	One
Spanner 1/2" x 5/8"	One
Spanner 1/4" x 5/16"	One
Spanner 5/16" x 3/8"	One
Grinding Wheel Dish Shaped 6" x 1/4" x 1" Bore	One
