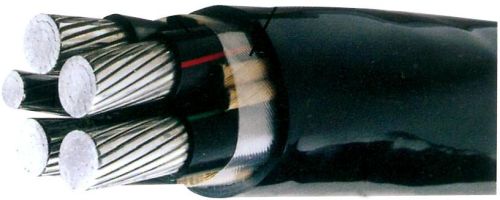

Unarmored Aluminum Alloy Cable

We are offering unarmored aluminum alloy cable zc-tc90(-40) yjhlv
basic info.
Model no.: zc-tc90(-40) certification: iso9001, ce, ccc, iso14001 ohsas18001
export markets: southeast asia, mid east, eastern asia
product description
unarmored aluminum alloy cables: applicable to 600v~35kv voltage class; applicable to dry or moist places below 90º c; can be installed indoors or outdoors, vertically or laid with brackets or along the walls, or installed deep underground. The minimum bending radius is 7 times of the outer diameter, which can be bent 360 degrees; applicable to the places of civil, commercial, industrial, schools, large stadiums, etc. Another name: yjhlv, replace copper cable yjv, zr-yjv, vv series
product properties: the conductors adopt 8000 series conductors introduced from company, with high creep resistance, high flexibility, high elongate, high tensile strength, connected safely and stably. The insulations adopt 90º c xlpe, which have good physical properties and resistances to heat and age, effectively reduce the insulation thickness, and do not release the corrosive gas and toxic gas when burning. Environmental characteristics comply with modern fire safety requirements.
Sheathing layers adopt environmental protection anti-radiation pvc, with excellent corrosion resistance, and can be used more widely.
application requirements: can be laid in indoors, outdoors, pipes, wire grooves, cable trenches, etc. Can be installed in the dry or moist places. Can be buried in the loose soil or cement.
voltage class: 0.61kv, 3.66kv, 610kv, 8.715kv, 1220kv, 1830kv, 2135kv, 2635kv
