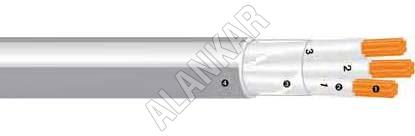

Unarmoured Control and Instrumentation Cable

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Easy to install, long-life and high resistance against corrosion are the highlights of Unarmoured Control and Instrumentation Cable (250V), which we offer. We are amidst the dependable Manufacturers,....

View More Details

Send Enquiry

Company Information

Alankar Cable Industries

Shalimar Bagh, Delhi

View Number

Member Since 17 Years
Nature of Business Retailer
Year of Establishment 1971

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Easy to install, long-life and high resistance against corrosion are the highlights of Unarmoured Control and Instrumentation Cable (250V), which we offer. We are amidst the dependable Manufacturers, Suppliers and Exporters of Unarmoured Control and Instrumentation Cable, based in New Delhi.
Applications

For fixed installation in most areas and on open deck in ships.
If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.

Highlights

Minimum recommended installation temperature -15 ^oC
Lowest operation temperature -40 ^oC
Core Identification : black numbers on white base
Identification : Lot number, cable type, cable size, voltage, temperature, standards, production month, manufacturer's name and meter marking printed on the sheath

Main Characteristics

Rated Voltage	150/250V (300V)
Maximum Conductor Temperature	+ 90^oC
Flame Retardant	IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A
Halogen Free	IEC 60754 series
Smoke Emission	IEC 61034 series

Specifications

RFA-FRHF 250V	Number of conductors & cross-section n x mm²	Nominal outer diameter mm	Approximate weight kg/km	Current rating A	Min. bending radius fixed installation mm
Part number	Number of conductors & cross-section n x mm²	Nominal outer diameter mm	Approximate weight kg/km	Current rating A	Min. bending radius fixed installation mm
26365	2x0,75	6,5	50	11,3	25
26366	3x0,75	7,0	60	9,8	30
26367	4x0,75	7,5	75	8,9	30
26368	5x0,75	8,0	85	8,3	30
26369	7x0,75	8,5	110	7,4	35
26370	10x0,75	11,0	160	6,6	45
26371	12x0,75	11,5	180	6,2	45
26372	14x0,75	12,0	200	5,9	50
26373	16x0,75	13,0	235	5,6	50
26374	19x0,75	13,5	265	5,3	55
26376	24x0,75	16,0	335	4,9	65
26377	27x0,75	16,5	365	4,7	65
26378	32x0,75	17,0	415	4,5	65
26379	37x0,75	18,0	470	4,3	70
