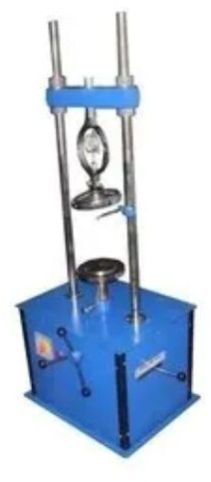

Unconfined Compression Test Apparatus
| Load Capacity | 5 kN to 100 kN, depending on the model |
| Strain Rate | Adjustable rates, commonly 0.5 to 2.5 mm/min |
| Specimen Size | Standard: 38 mm diameter × 76 mm length; other sizes available |
| Load Measurement | Proving rings (e.g., 5 kN, 10 kN, 50 kN) or load cells |
| Displacement Measurement | Dial gauges (e.g., 25 mm × 0.01 mm) or digital transducers |
| Power Supply | Typically 220 V, 50/60 Hz, single-phase |
| Dimensions & Weight | Varies by model; for example, 530 × 375 × 870 mm, approximately 53 kg |
Load Frame: Screw-operated, available in manual or motorized versions
Platen Assembly: Upper and lower platens to hold the soil specimen
Coning Tools: Male and female tools for preparing specimens (e.g., 38 mm diameter)
Split Moulds: For casting specimens of various diameters (e.g., 38 mm, 50 mm, 75 mm, 100 mm)
Dial Gauge or Digital Indicator: For measuring axial deformation
Proving Ring or Load Cell: For measuring applied load
