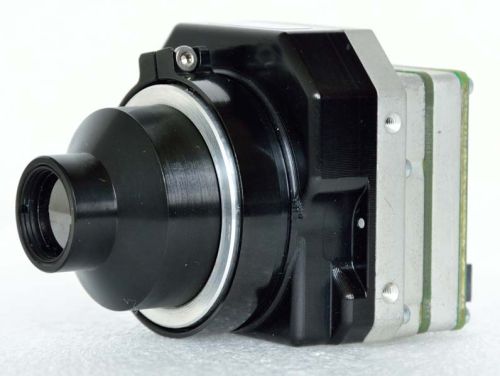

Uncooled Thermal Imaging Module/ Cores

MOQ1 Piece(s)
Power dissipation≤1.8W@25℃
Pitch17um
Spectral band8μm～12μm
Pixel640 ×512
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Product Details

Pitch17um
Frame frequency25Hz
NETDCamera ≤ 60mK(F/1）/ Detector ≤ 50mK(F/1）
Pixel640 ×512
Power dissipation≤1.8W@25℃
Spectral band8μm～12μm

We are offering uncooled thermal imaging module/ cores. Application
we provide uncooled thermal imaging modules to research institutes and enterprises for the thermal camera development and system integration.
Feature
★ uncooled vox fpa microbolometer, high sensitivity.
★large area array，small pixel array，super-high ifov.
★new fpga intelligent image processing platform, clear image.
★ multiple control and image output interfaces, easy to integrate.
★compact structure, small volume and light weight.
★wide power supply range, low power dissipation and short start time.
Technical specification
detector uncooled vox fpa
pixel 640 ×512
pitch 17μm
spectral band 8μm～12μm
frame frequency 25hz
analog video pn
digital video 16bit ttllvdscameralink
power dissipation ≤1.8w@25℃
input voltage dc7v～12v
starting time
