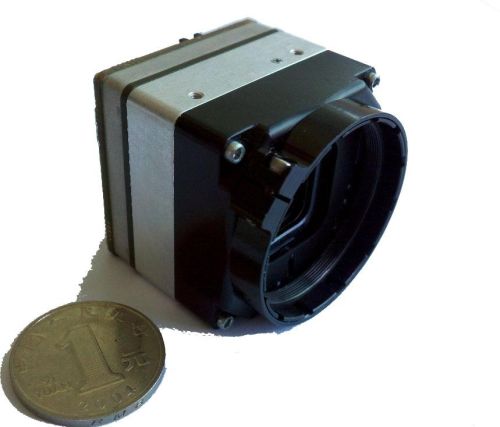

Uncooled Thermal Imaging Module

High resolution thermal imaging module JH640CM_A01 is a new revolution of the first-class products. Featuring of high resolution 640x512 with 17μm pitch sensor, it offers unmatched image performance for defense and homeland security. Ultra low power dissipation, excellent non-uniformity, analog and digital video interface options with serial control, variable optional lens, it strongly appealing to OEMs and system integrators for handheld thermal camera, TWS, UAV etc.
Features & Benefits
Large scale array and small pitch offers extremely excellent image quality�
Advanced image processing (DDEsharpening) technology delivers crisp and crystal image�
Optional video interface: LVDS, TTL, Ethernet and camera link digital interface allows output �
video to PC for research and development
Electronic compass and GPS position system data is available to be written into module via �
serial port
Variable lens optional�
Technical Specifications
Detector
Detector Uncooled VOx Microbolometer
Pixels 640x512
Pitch 17μmx17μm
Spectral band 8μm~12μm
Fill factor >80%
Sensitivity ( NETD) �70mK (F1.0)
Frame rate 25Hz30Hz
Video output PALNTSC
Image processing DDE, AGC
Starting time
