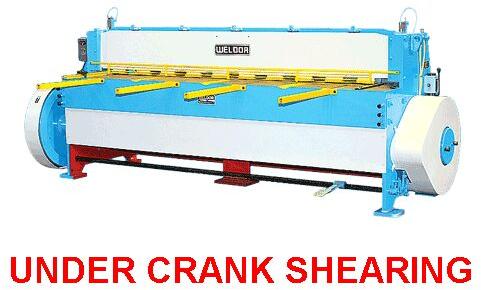

Under Crank Shearing Machine

WELDOR Guillotine Shearing Machines have been designed & developed through structural analysis technique for continuous production, accuracy and repeatability.
FRAME : Rigid steel frame of Weldor Shears are optimally designed to avoid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by accurate machined guideways ensuring proper clearance and clean cut.
HOLD - DOWN SYSTEM : Spring loaded mechanical Hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Holddown units are provided with oversize pads to avoid impressions on sheet metal on request.
BLADES : Weldor Shears are provided with high quality single segment (HcHcr) Blades for longer tool life. Ease in assembling of knife reduces down - time. The shear blades are four edged.
LUBRICATION : All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.
MECHANICAL BACKGAUGE : This is a standard equipment provided on all Weldor shears. Scale on the backgauge gives instantaneous reading of distance between shear and back gauge. Thus avoiding errors and maintenance encountered in electronic equipment.
FINGER GUARD : fitted in front of hold - down for operator protection without obstructing viewing.
