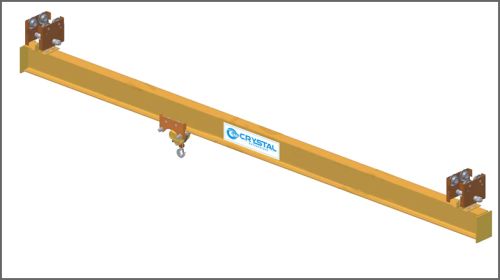

Under Slung Cranes

Height2 m to as per customer requirements.
OperationIndoor / Outdoor
Safe Working Load (SWL) :1 ton to 15 tons
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Under slung Cranes are used where headroom is not sufficient to install normal EOT Cranes. Thesecranes run on lower bottom of the beams in hanging positions. These cranes are designed as per the....

View More Details

Send Enquiry

Company Information

Crystal Enterprises

Alandi, Pune, Maharashtra

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Under slung Cranes are used where headroom is not sufficient to install normal EOT Cranes. Thesecranes run on lower bottom of the beams in hanging positions. These cranes are designed as per the requirements in single girder or double girder type.

TECHNICAL SPECIFICATIONS :
Safe Working Load (SWL) : 1 ton to 15 tons
Operation: Indoor / Outdoor
Height of Lift: 2 m to as per customer requirements.
Class of Duty : M5-M7-M8, AS PER IS 807/3177
Wire Rope Construction/ No. FALLS: Con 6X36 IWRC (Steel Core) , 2-16 FALLS
Main Hoisting Speed (General) : 4 m/min Micro With VFD / & Customized as required
Cross Travel Speed (General): 15 m/min (Micro with VFD / & Customized as required
