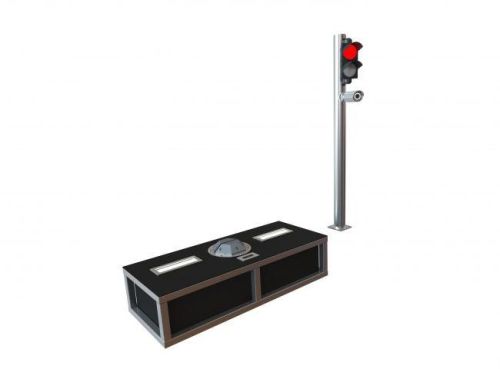

Shield Automations under vehicle surveillance system

Get Latest Price

Sold By : Shield Automations Pvt. Ltd.

Send Inquiry

Product Specifications

Total Carbohydrate2 Years International Warranty +6
PROTECTION CLASSIP67
ACCESSORIESControl PC, Windows 10 License, 22” LCD Monitor, Power Control Panel and 3 kVA UPS
DIMENSIONS1160x460x295 (WxLxH)
VEHICLE DETECTIONPhotoelectric Sensor
SCANNING SPEED LIMITScans All Type of Vehicles with Passage Speed up to 40 km/h
FINISHINGAnti Rust Layer, Finished by Electrostatic Powder Coating with Heat Treatment
CERTIFICATESISO 9001:2015, CE and OHSAS Certified
PROTECTIONWaterproof and Anti-fog
CASE TYPEShallow Mount Under Vehicle Surveillance System
MATERIAL - TOP PLATE5 mm Thick Steel Plate
OPERATION TEMPERATUREOperation Temperature -20°C / + 70°C, Storage Temperature -40°C / +70°C
LINE RATE26 kHz
UNDER VEHICLE LIGHTINGIllumination by White Power LED 100 W
OUTPUT IMAGE RESOLUTIONMinimum 16 Mp Under Vehicle Imagery
CAMERALine Scan Monochrome 4096x1 Resolution
STORAGE500,000 vehicle information storage memory
MATERIAL - CASE2 mm Thick Steel Underground Case Enhanced by 100 mm Anchorages
OPERATION VOLTAGEOperation Voltage 110-240V AC, 50-60HZ
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader

Preferred Buyer From : All over the world

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Retailer Of Door Type Metal Detector, Fixed Bollards, Hydraulic Rising Bollards, GSR- X Anti Terror Series Road Blockers, Industrial Line Full Height Turnstile, Exclusive Line VIP Swing Gates, Classic Line VIP Swing Gates, Metro Turnstile System, Tripod Turnstile Systems, Full Height Turnstiles, Fingerprint Reader, GSC-S Series Swing and Sliding Gates, MKS Series Tire Killers, GSK Series Tire Killers, X-Ray Baggage Scanner.
