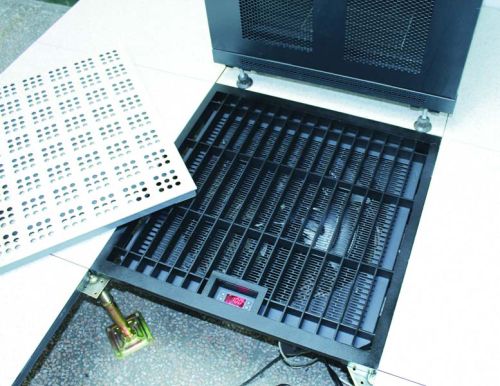

Contact SupplierIntroduce fresh air directly into the occupant’s breathing zone by using our Underfloor Air Conditioning Fans. We have adopted optimum designing techniques to keep our products in compliance with the set industry standards. For customer flexibility, different makes are available with us. For competitive prices, contact us. We are the reliable Manufacturer, Supplier and Exporter of Underfloor Air Conditioning Fan in China and abroad.
Product Brief : No maintenance cost Installation can be carried out by IT staff Multiple control options for both models available High precision, quick response to temperature measurement General Situation Air Boosted Power Fan Unite is designed to provide a blast of cooling through an individual directional airflow panel. The temperature controlled fan unites are available quad fan models. The fan has multiple control options to automatically turn on when conditions require additional cooling. This powerful solution is ideal for solving the toughest hot spots in a data center. Product characteristics No maintenance cost Installation can be carried out by IT staff Multiple control options for both models available VN-client sensor network High precision, quick response to temperature measurement User programmable set point Viewable Peak Temp for walkthrough check of each rack Infinitely variable fan speed from 0-100% for precise airflow control Easily installs into either 24" or 60cm raised floor systems
| Parameter Name | Power Parameters | Power | Blowing Rate | Fan Type | Fan Quatity | Temperature Sensor Quantity | Noise | Communication Interface | |
| Model | Rated Voltage | Rated Frequency | -- | -- | |||||
ABU-1AC350-SN | 220 | 50 | 140 | 2670 | AC350 | 1 | 1 | 58 | RS485 |
ABU-1AC350-MN | 220 | 50 | 145 | 2670 | AC350 | 1 | 3 | 58 | RS485 |
ABU-1AC400-SN | 220 | 50 | 195 | 3500 | AC400 | 1 | 1 | 60 | RS485 |
ABU-1AC400-MN | 220 | 50 | 200 | 3500 | AC400 | 1 | 3 | 60 | RS485 |
ABU-1AC450-SN | 220 | 50 | 235 | 4500 | AC450 | 1 | 1 | 62 | RS485 |
ABU-1AC450-MN | 220 | 50 | 240 | 4500 | AC450 | 1 | 3 | 62 | RS485 |
ABU-1EC350-SN | 220 | 50 | 175 | 3600 | EC350 | 1 | 1 | 65 | RS485 |
ABU-1EC350-MN | 220 | 50 | 180 | 3600 | EC350 | 1 | 3 | 65 | RS485 |
ABU-1EC400-SN | 220 | 50 | 395 | 4800 | EC400 | 1 | 1 | 68 | RS485 |
ABU-1EC400-MN | 220 | 50 | 400 | 4800 | EC400 | 1 | 3 | 68 | RS485 |
ABU-1EC450-SN | 220 | 50 | 330 | 5600 | EC450 | 1 | 1 | 69 | RS485 |
ABU-1EC450-MN | 220 | 50 | 335 | 5600 | EC450 | 1 | 3 | 69 | RS485 |
ABU-4AC200-SN | 220 | 50 | 280 | 3100 | AC200 | 4 | 1 | 65 | RS485 |
ABU-4AC200-MN | 220 | 50 | 285 | 3100 | AC200 | 4 | 3 | 65 | RS485 |
ABU-4EC200-SN | 220 | 50 | 225 | 3600 | EC200 | 4 | 1 | 66 | RS485 |
RS485ABU-4EC200-MN | 220 | 50 | 230 | 3600 | EC200 | 4 | 3 | 66 | RS485 |
