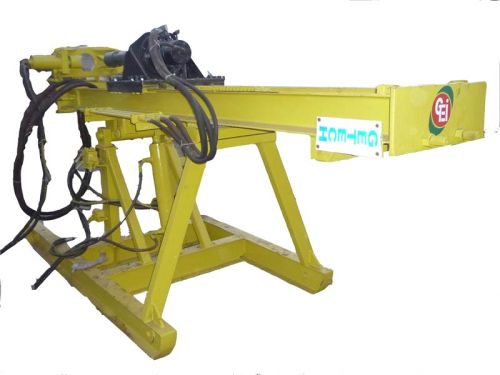

Underground Drilling Rig

our specialization lies in designing underground drilling rig. We are a famed name as underground drilling rig manufacturer, exporter and supplier in andhra pradesh, india. To fabricate underground drilling rig, we procure quality materials only from the certified vendors. Our underground drilling rigs are reckoned for compact construction and efficient performance. brief description

• the smdr100 is hydraulically operated drill rig is ideal for underground drain holes etc. Drilling application in rock formation.
• thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class.
• the smdr100 rigâ��s flexibility means it will be two piece construction (rig assembly, and power pack).
• highlights
  • proven technology ensures easy maintenance and more productive.
  • the rig can be customized as per customer requirement.
  • all the actuators are operated by proportional control valves.
  • hydraulic pump driven by electrical motor.
  • key specification
    • drill rod handling5.0feet (1.5meter)
    • drilling depth up to 330feet (100meter)
    • drilling diameter 4.5inch (114mm)
    • pull up load 2500 kgf.
    • drill head torque 80 kg.m
    • note : contact us for diesel engine drive.
