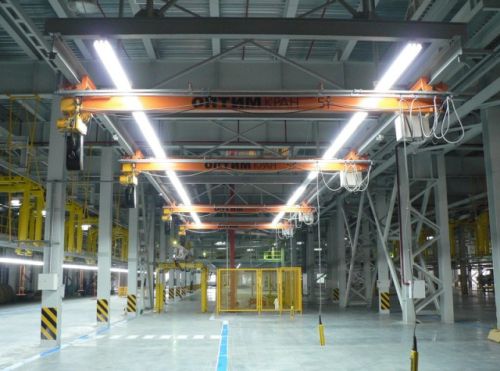

Underslung Single-girder Overhead Travelling Crane

We offer cooperation in designing, manufacturing, delivery and assembly of cranes, Single-girder Double-girder overhead travelling cranes Underslung cranes Crane modernization Gantry cranes Bridge Cranes and metal constructions for You.
Crane load capacity, t - from 5 to 32 tons
Span, m (L) - to 28,5 meters
Lifting height, m (H) - 3; 6; 9; 12; 15; 18; 24; 30; 36 meters
Speed, m/min:
- load lifting - from 0,1 to 12
- hoist travel - to 20
- crane travel - to 60
Crane work load group according to ISO 4301/1 - A1…A5
Mechanism work load group according to ISO 4301/1 - M3…M5
Grappling device - hook, traverse, electromagnet, grapple and other
Crane control - radio control, suspended remote
Drive control system - frequency, transmitter, mixed
Climate production - U1, U2, U3
Power line - sliding, cable
Operational temperature range °C - from -40 to +40
Uunderslung cranes allow for availability on the entire area of the production hall
compensation of the crane rails span variation by a unique design of end beams (original idea)
booms' overhangs allow for the increase in the serviced area beyond the crane overhand limit
with simple mounting to existing construction elements of hall's ceiling it is possible to simplify the design of the crane rails posts
little energy consumption
optimal load bearing per crane rail
