Features

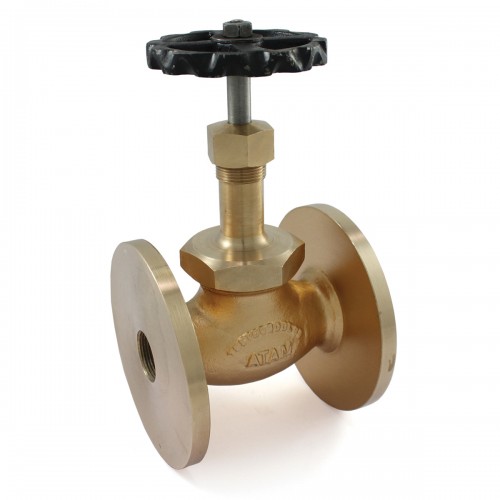

Union bonnet, Inside screw, Rising stem, S.S. trim, Renewable seat/disc
Flanged ends BS-10 Table-F
Product Standard : BS 5154
Test Pressure
| Nominal Size (mm) | FF | H | ØW | ØFD | FT | K | n | Ød |
|---|---|---|---|---|---|---|---|---|
| 15 | 83 | 136 | 64 | 3.3/4″ | 5/16″ | 2.5/8″ | 4 | 9/16″ |
| 20 | 93 | 156 | 71 | 4″ | 5/16″ | 2.7/8″ | 4 | 9/16″ |
| 25 | 115 | 168 | 86 | 4.3/4″ | 3/8″ | 3.7/16″ | 4 | 11/16″ |
| 32 | 118 | 180 | 96 | 5.1/4″ | 3/8″ | 3.7/8″ | 4 | 11/16″ |
| 40 | 137 | 225 | 118 | 5.1/2″ | 7/16″ | 4.1/8″ | 4 | 11/16″ |
| 50 | 185 | 248 | 148 | 6.1/2″ | 7/16″ | 5″ | 4 | 11/16″ |
| 65 | 208 | 285 | 148 | 7.1/4″ | 1/2″ | 5.3/4″ | 8 | 11/16″ |
| 80 | 224 | 325 | 197 | 8″ | 9/16″ | 6.1/2″ | 8 | 11/16″ |
| 100 | 243 | 390 | 197 | 9″ | 11/16″ | 7.1/2″ | 8 | 11/16″ |
| P.No. | Name of Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Gun Metal | BSEN 1982 Gr. CC491K / IS 318 Gr. LTB2 |
| 2 | Seat Ring | Stainless Steel | ASTM A 276 TYPE 410 / IS 6603 |
| 3 | Disc | Stainless Steel | ASTM A 276 TYPE 410 / IS 6603 |
| 4 | Disc Nut | Gun Metal | BSEN 1982 Gr. CC491K / IS 318 Gr. LTB2 |
| 5 | Bonnet | Gun Metal | BSEN 1982 Gr. CC491K / IS 318 Gr. LTB2 |
| 6 | Gland Nut | Gun Metal | BSEN 1982 Gr. CC491K / IS 318 Gr. LTB2 |
| 7 | Gland | Gun Metal | BSEN 1982 Gr. CC491K / IS 318 Gr. LTB2 |
| 8 | Stem | Stainless Steel | ASTM A 276 TYPE 410 / IS 6603 |
| 9 | Packing | Graphited Asbestos | – |
| 10 | Handwheel | Cast Iron | BS 1452 Gr. GJL220 / IS 210 Gr. FG220 |
| 11 | Washer | Carbon Steel | – |
| 12 | Handwheel Nut | Carbon Steel | – |
