Universal Cutter, Tool Grinder

We are offering universal cutter, tool grinder.
universal cutter and tool grinder:

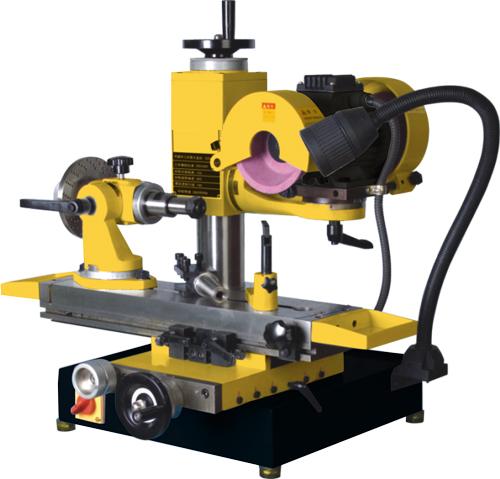

hl-600f universal cutter and tool grinder:
1.product id:hl-600f
2.update time:2009.12.14
3.speed of grinding wheel:2800rpm
horizontal travel of the operating table
260mm
longitudinal travel of the operating table
150mm
area of the operating table
130×550mm
elevating distance of wheelhead
150mm
rotating angle of wheelhead
360°
grinding wheel size
150×16/50×32mm
speed of grinding wheel
2800rpm
horse power and voltage of motor
3/4hp.220v/380v
net/gross weight
160kgs/168kgs
package size
700×630×630mm
1. The machine is applicable to sharpening high-speed steel, hard metal or cutters made of other materials and is convenient for cylindrical grinding, plane groove processing and three-dimensional profiling, etc. If special accessories are equipped, it can also be used to grind various gears, worm-wheel hobs, form tools, ball-end milling cutters, fluted twist drills, taper taps, etc.
2. It is able to in cooperation with other accessories: shaped cutting tool, butt mill, end mill, r-sharped mill, circular cutter, face and side cutter, single-angle cutter, reamer, turning tool, r-shaped turning tool, hobbing cutter, drill, screw tap, graver, strong cutting tool, chamfering tool, round paper knife, circular and plane grooves, and profiled faces, etc.
3. The operating table adopts the imported high-precision linear ball slide rail which can ensure the table stable and easy to operate.
4. The motor can rotate 360°.the two sides of the motor can be installed with two grinding wheels at the same time.
5. When you grind cutting tools of different materials, you may restart grinding by simply rotating the motor, which can enhance security and reduce the time of disassembling and reparation. The machine used the f c30 cast iron of high toughness to keep the smooth operation for a long time.
6. The maximum linear speed of grind wheel is 40m/s,and the tapered bore of inner ring for the spindle of the spindle stock can be provided as per customer demands in other structural dimensions.
