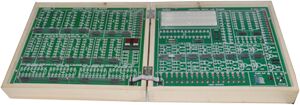

Universal Digital Lab Trainer

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

With onboard one Bread board QUAD 2-input NAND Gate using IC 7400 – 01 No QUAD 2-input NOR Gate using IC 7402 – 01 No NOT HE X Inverter using IC 7404 – 01 No QUAD 2- input AND Gate using IC....

View More Details

Send Enquiry

Company Information

Physitech Electronics

Bhoiguda, Secunderabad, Telangana

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

With onboard one Bread board
QUAD 2-input NAND Gate using IC 7400 – 01 No
QUAD 2-input NOR Gate using IC 7402 – 01 No
NOT HE X Inverter using IC 7404 – 01 No
QUAD 2- input AND Gate using IC 7408 – 01 no
QUAD 2- input OR Gate using IC 7432 – 01 no
QUAD 2- input XOR Gate using IC 7486 – 01 no
4 input NAND using IC 7421 -01 no
4 input NOR using IC 7425 – 01 no
TR-3- input NAND Gate using 7410 IC – 01 no
BCD seven segment decoder using 7447 IC – 02 no.s
4-bit parallel adder using IC 7483 – 02 no.s
Dual D flip-flop using 7474 IC – 02 no.s
Dual Master slave JK flip flop using 7476 IC – 02 no.s
4-bit counter using IC 7493 – 02 no.s
4 bit comparator using IC 7485 – 01 no
4 bit ALU using IC 74181 – 01 no
Dual 4:1 multiplexer using IC 74153 – 02 no.s
QUAD 2:1 Multiplexer using IC 74157 – 01 no
Dual 2x4 decoder using IC 74155 – 01 no
8:1 multiplexer using 74151 IC-01 no
Shift Register using IC 74194 – 01 no
Shift Register using IC 74195 – 02 no.s
6X4 RAM using IC 74189 – 01 no
Logic level input switches with LED indicators to
indicate Status of HIGH or LOW 16 No.s
16 – pin DIP IC Bases – 02 no.s
14 - pin DIP IC Bases – 02 no.s
Single shot pulser (-Ve & + Ve) – 01 no
Fixed DC Power supply (+5V,-5V,+12V,-12Vwith switch control -01
Fixed Clock selection (1Hz,10Hz,100Hz,1KHz,2KHz,4KHz,&8K
ALL IC’S ARE MOUNTEDON IC BASES WITH ENCLOSURE
