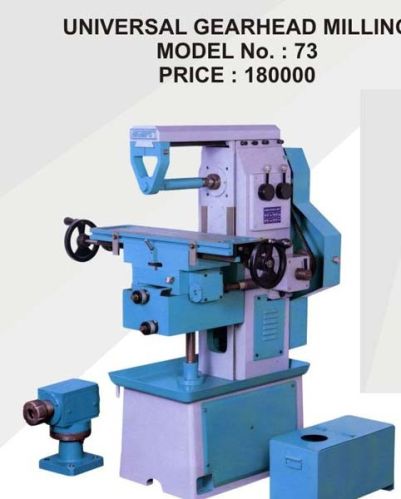

Universal Gear Head Milling Machine

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Universal Gear Head Milling Machine is used for the purpose of machining parts to accurate size and shape. We offer premium quality Universal Gear Head Milling Machine that is famous in the industry for its accuracy, strength and longevity. We are Rajkot; Gujarat based Manufacturer and Supplier of Universal Gear Head Milling Machine. Customers can purchase Universal Gear Head Milling Machine from our organization at reasonable rates.

View More Details

Send Enquiry

Product Details

Specifications

Working Surface frame	Mm	760 x210
No of t-slot	no.	3
Maximum distance	Mm	40
From spindle centre to table	Mm	300
Longitudinal Feed	no	380
Cross slide feed	Mm	125
No of longitudinal feed	Mm	6
No of Spindle Speed	No	4
Range of spindle speed	RPM	65 to 360
Diameter of milling arbour	Mm	25.4
Milling collate	no	E 40
Distance under over aram	Mm	150
Main drive electric motor	No	1/1440
Floor space	hp/rpm	635x400
Hieght of the machine	Mm	1370
Approx weight		550 kg.
