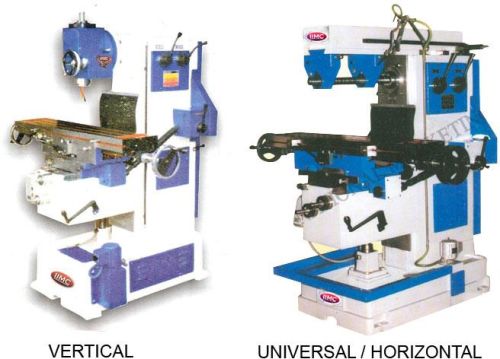

Universal/Horizontal/Vertical Milling Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Vertical attachment head, Slotting attacment, Rack cutting attacment, Dividing Head, Rotary table, Milling machine vice, Machine lamp. Specifications are not binding and are subject to modification and change without notice. The standard and optional accessories listed are provisional. Final list will be as per our offer.

View More Details

Send Enquiry

Company Information

India International Marketing Co.

Mayapuri, Delhi

View Number

Member Since 19 Years
Nature of Business Manufacturer
GST No. 07AAFFI7020K1ZE

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model	GM 1U	GM 1.5U / 1.5V	GM 2U / 2V
TABLE	MM	MM	MM
Working Surface	1050 x 240	1140 x 255	1270 x 300
No. Of T. Slots/ Size	3 x 14	3 x 14	3 x 16
Centre Distance between T-Slots	60	60	70
Swivel	± 45°	± 45°	± 45°
Longitudinal Travel X	550	600	700
Cross Travel Y	170	230	255
Vertical Travel Z	340	410	450
SPINDLE
NO. Of Spindle Speeds	9	9	9
Range of Spindle Speeds	58-768	58-768	63- 727
Spindle Taper	ISO 40	ISO 40	ISO 40
Arbor Diameter	25.4	25.4	25.4
FEED
No of feeds	3	3	3
ELECTRICALS
Main Motor 1440 RPM	2 H.P	2 H.P	3 H.P
Coolant Pump Motor	0.1 H.P.	0.1 H.P.	0.1 H.P.
SHIPPING DIMENSIDNS
Length x Width x Height (cm)	132 x 117 x 170	140 x 125 x 195	173 x 137 x 220
Net Weight (Kg.)	1000	1250	2000
Gross Weight (Kg.)	1300	1600	2500
