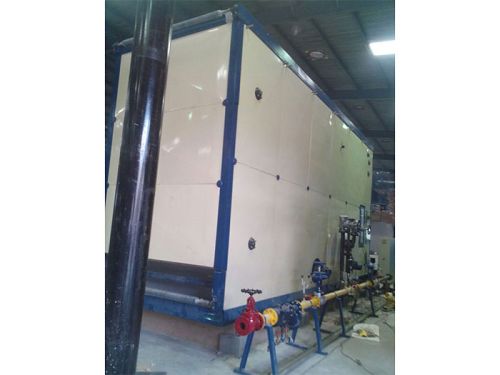

Universal Loop Steamer

Universal Loop Steamer

Listing ID #3880977

Get Latest Price
  • Supply Type Exporter, Supplier
Preferred Buyer From : All over the world

We provide a vast range of Loop Steamer/Curing / Polymerizing Machine in India. The fixation of dyes on fabric is made by a polymerization in hot air at 150°C. We have improved the polymerization....
View More Details
Send Enquiry

Company Information

Sun Textile Engineers verified-icon
Sachin, Surat, Gujarat
View Number
  • Member Since 13 Years
  • Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

We provide a vast range of Loop Steamer/Curing / Polymerizing Machine in India. The fixation of dyes on fabric is made by a polymerization in hot air at 150°C. We have improved the polymerization process on fabric moves in tension-less condition by our quality Curing / Polymerizing Machine; there is no rubbing and no lengthwise stretching on printed fabric.

For low temperature steaming the textile processing machine has a chamber roof which is heated by steam coils preventing condensation and drippings. Our steam agers are equipped with special device, a Steam Saturator, which conditions the steam passes through the water before being injected into the steaming chamber. These particular characteristics of steam pre- conditioning which prevent and control the exothermic reaction of the fabrics and of the printing paste, make our machine " UNIQUE" of its kind and are the basis of great success achieved all over in textile industries.

For high temperature steaming our steam agers are equipped with efficient re-circulation system and heat exchangers using Thermic Fluid which ensures uniform temperature in the chamber. Special system to allow air to re-circulate instead of steam permitting polymerization treatment with hot air upto 160°C.

Some of the important features are:-
  • The machine is essentially built on a steel frame with insulation panels containing mineral wool. Inside the machine, centrifugal blowers are mounted that suck surrounding air through a filter and blow into the machine chamber. This blowing is done from the bottom, underneath the heaters. In this way, the fresh air is first heated and then mixed with the circulation air.
  • Eventually oil condenses or hydrocarbons, which develop during fixation, are removed through an exhaust fan partially and partially re-circulated air-to-air heat recovery within the chamber.
  • The fabric transports on free loops, quantity of fabric contain from 50 meters to 250 meters and working fabric width available from 1200mm to 3300mm.
  • Some special de-ionization bars are installed at the inlet and outlet to reduce the fabric electrification phenomena.
  • The air heat is reached by thermic oil battery or direct gas burner.
  • The machine is usually equipped with electric control panel and on request it is possible to supply a logic programmer.




Model

Unit

TLS-75

TLS-140

TLS-210

TLS-275

TLS-345

Fabric Capacity

Mtrs

75

140

210

275

345

Standard Roller Width

mm

1350-3500

Working Speed

Mtrs/min

3-15

5.6-28

8.4-42

11-50

13.8-50

Dwell Time

Min

5-25

5-25

5-25

5.5-25

6.9-25

Process Temp required in saturated condition

°C

102-108

Process Temp. required in high temp. condition

°C

130-180

Process Temp. required in hot air condition

°C

100-160

Average Steam Consumption

Kg/hr

275-650

400-900

500-1100

600-1225

700-1350

Installed Thermal Power

K.cal/hr

61500-154000

107500-231000

138500-284600

161500-538500

185000-370000

Installed Electric Power

Kw/ HP

11/15

11/15

14/19

14/19

17/23

Steam Pressure Required Before PRV

P.S.I

60

Steam Pressure Required After PRV

P.S.I

15-30

Thermic Oil Temp. Required

°C

240°C

Floor Space Required

Chamber Length (A)

mm

2903

4256

5610

6962

8315

Total Length        (B)

mm

9453

10806

12160

13512

14865

Width

mm

Roller Width + 2256

Height

mm

3888

3888

3888

3888

3888
  • We reserve the right to change the dimensions / specifications without any notice
  • All Dimensions are in mm.
  • GL= Ground Level.
  • H = Roller Width



For 127 mm Gap Between Two Conveyor Rolls

Model

Unit

TLS-75

TLS-140

TLS-210

TLS-275

TLS-345

TLS-325

Fabric Capacity

Mtrs

60

115

165

220

270

325

Standard Roller Width

mm

1350-3500

Working Speed

Mtrs/min

3-15

5.6-28

8.4-42

11-50

13.8-50

13-50

Dwell Time

Min

5-25

5-25

5-25

5.5-25

6.9-25

6.5-25

Process Temp required in saturated condition

°C

102-108

Process Temp. required in high temp. condition

°C

130-180

Process Temp. required in hot air condition

°C

100-160

Average Steam Consumption

Kg/hr

275-650

400-900

500-1100

600-1225

700-1350

800-1475

Installed Thermal Power

K.cal/hr

61500-154000

107500-231000

138500-284600

161500-538500

185000-370000

210000- 400000

Installed Electric Power

Kw/ HP

11/15

11/15

14/19

14/19

17/23

17/23

Steam Pressure Required Before PRV

P.S.I

60

Steam Pressure Required After PRV

P.S.I

15-30

Thermic Oil Temp. Required

°C

240°C

Floor Space Required

Chamber Length (A)

mm

2903

4256

5610

6962

8315

9668

Total Length        (B)

mm

9453

10806

12160

13512

14865

16218

Width

mm

Roller Width + 2256

Height

mm

3888

3888

3888

3888

3888

3888

Company Details close-icon

A start-up company was established in the year 1976 by Mr. Vijay Sharma, a visionary engineer keeping focus on the emerging market of Surat and India.
With vast experience and rich knowledge, the company has added various textile dyeing printing machinery in its’ portfolio. Today the company is manufacturing, marketing and exporting a vast range of textile dyeing and printing as per the market and customer needs.
With able leadership of Mr. Vijay Sharma, the company has gained a strong foothold in the domestic as well as international market and today our name is very well accepted and established in the market.
  • Nature of Business Manufacturer / Exporter / Supplier
