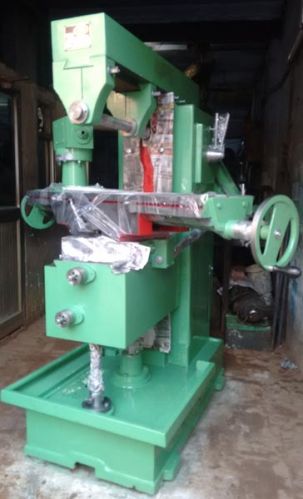

Universal Milling Machine

Supply TypeManufacturer
Preferred Buyer Location All over the world

Universal Milling Machine that we offer is well tested and therefore, is the perfect option on which buyers can easily rely. We are one of the prominent Manufacturers, Exporters and Suppliers of Universal Milling Machine. We have a well-equipped production unit that enables us to produce Universal Milling Machine in bulk at a time. One can place retail as well as bulk orders for the machine with us.

View More Details

Send Enquiry

Specifications

MODEL		DAL M1	DAL M2	DLB M3	DLB M4
TABLE
Working Surface Swivel T-Slot Nos./ Size T-Slot Centre Table Loading Capacity (Kg) X-Longitudinal Travel Y-Cross Travel Z-Vertical Travel		1800 x 400 ±45° 3/17 100 1100 1100 400 550	1300 x 290 ±45° 3/17 65 300 700 205 400	1400 x 350 ±45° 3/17 80 500 800 255 450	1600 x 360 ±45° 3/17 90 800 900 305 500

FEEDS
No. of Rapid Feeds No. of Feeds X-Y Rapid Feeds/min. Z-Rapid Feed/min. Range of X-Y s Feeds/min. Range of Z Feeds/min.		1 9 800 250 18,200 6 to 75	2 18 735-1065 250-350 13,305 4 to 90	2 18 735-1065 250-350 13,305 4 to 90	2 18 735-1065 250-350 13,305 4 to 90

SPINDLE
Spindle Taper No. of Spindle Speeds Range of Spindle Speeds (RPM) Distance from Spindle to Table Distance Spindle Centre to Column Vertical Head Tilt Manual Quill Travel		ISO 40 9 40-1100 325 250 ± 90° 95	ISO 40 12 40-1120 400 300 ± 90° 95	ISO 40 12 40-1120 500 350 ± 90° 95	ISO 40 12 40-1120 550 350 ± 90° 95

ELECTRICAL
Main Motor Feed Motor Coolant Pump (Optional)		3 HP 1.5 HP 0.1 HP	3 HP 2 HP 0.1 HP	5 HP 2 HP 0.1 HP	7.5 HP 2 HP 0.1 HP

DIMENSIONS (Approx.)
Overall Length Width Height Net Weight Gross Weight	mm mm mm Kg Kg	1700 1500 1800 1800 2200	1850 1600 2080 2800 3200	2000 1750 2200 3400 3900	2100 1950 2300 3800 4300
