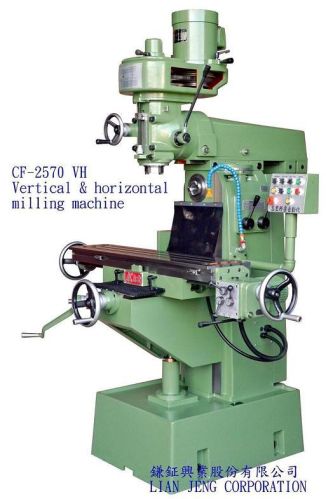

Universal Milling Machine

We are offering universal milling machine.
Models (cf-2570vhvhu)
table
working surface of table 250mm×1100mm
longitudinal travel 700mm
transfer travel 280mm
vertical travel 485mm
range of longitudinal feed speed(mm) 30~825mmmin (9steps)
range of longitudinal rapid speed(mm) 1300mmmin
table will swivel(r & l) 30°
vertical spindle
spindle nose n.t.#40
spindle speed(8 steps)r.p.m 210-3440(60hz) 170-2860(50hz)
distance from spindle end to table top 80-565mm
distance from spindle center to column 150-500mm
vertical travel of quill surface 125mm
swiveling angle of head(right & left) 90°
cross travel of ram 350mm
horizontal rotation angle or ram 360°
horizontal main spindle
range of spindle speeds(6 speeds)(r.p.m) 60cs(50~1180)50cs(40~980)
taper of spindle bore nt40#
spindle center to table 0~485mm
spindle center to over arm bottom 115mm
motor
horizontal milling(vertical milling head) 3hp
table longitudinal feed 12hp
coolant pump 18hp
net weight(approx) 1300kg
gross weight 1400kg
dimensions of packing case 1500×1720×2190mm
standard equipment
coolant system 1 set.
Cutter arbor 1 pc.
Cutter sleeve 1 set.
Draw bar 1 pc.
Tool box with adjusting tool 1 set.
Optional equipment
coolant tray 1 set.
