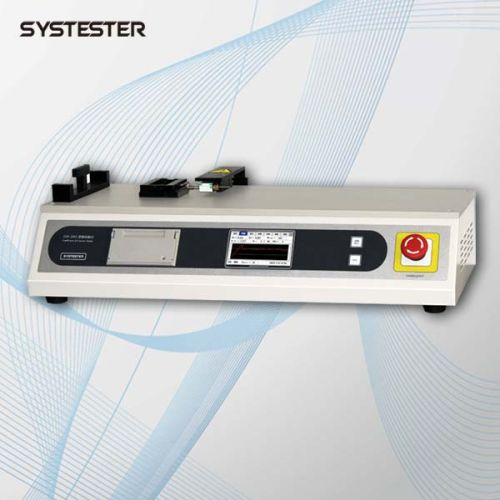

Universal Static and Dynamic Coefficient Of Friction Tester

universal static and dynamic coefficient of friction tester apply to plastic films, laminated films, foils, sheets, rubber, paper, paperboard, wood, brake pad, tyre, windshield wiper, conveyor belt, hair, metal, carbon rod, catheter, artificial skin etc testing of static and dynamic coefficient, especially used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.
universal static and dynamic coefficient of friction tester Features
1: Micro-printer built-in.
2: Designed based on ISO, GB standard.
3: Highly accurate load cell.
4: Test speed can be set freely through touch screen.
5: Keyboard + touch screen operation.
6:One touch to start a new test.
7: 2 patents and 2 counts of software copyright registration.
8: DB9 RS232 communication port.
9: Professional computer software supporter.
10: Wide range sample thickness test is available.
12: Overload, limit position protection.
13: Real color TFT LCD display.
14: Various non-standard test & analysis functions is available.
15: Low power consumption.
16: Ethernet communication module is optional.
universal static and dynamic coefficient of friction tester Technical indexes
Load cell range customization
Accuracy 0.5
Max travel distance 400mm
Sled mass 200g,500g customization
Test speed 0~300mmmin
Sample thicknee 30mm optional
Power supply AC220V 60Hz
Power consumption 21W
Dimension 650mm(L) *340mm(B)* 210mm(H)
Net weight 22kg
universal static and dynamic coefficient of friction tester Standards
ISO 8295, GB 10006, GBT 17200
universal static and dynamic coefficient of friction tester Configuration
Delivery: main unit, sled 200g.
Optional: Professional computer software, communication cable, non-standard sled, calibration assemblies, LMIS system.
