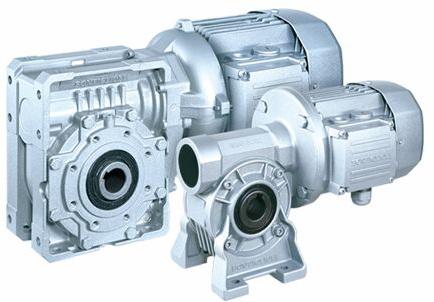

Universal Worm Gear Motor

Wormgears and motors are also available in the enhanced protection "EP" configuration (gear motor for hostile environments), featuring food grade specifications and extra corrosion protection, allowin

Torque Range
13 Nm... 7.100 Nm

Mechanical Rating(n1= 1400 min-1)
0,04 ... 75 kW

Gear ratios
7 ... 10000

Output Configurations
Keyed Hollow Shaft
Plug-in Solid Output Shaft
Torque Limiter as an Option

Input Configurations
VF and W: IEC-normalized motor adapter
VF and W: solid input shaft

Applicable AC motors
VF and W: IEC-normalized motors and brake motors - BN series/BE series
W: integral motors and brake motors series M/ME series
Single and dual speed motors

Main Brake Features
DC and AC supply
Faster Brake Engage/Disengage through Electonically
Controlled AC/DC Rectifier type SB, NBR, SBR (options)

description

Wormgears and motors are also available in the enhanced protection "EP" configuration (gear motor for hostile environments), featuring food grade specifications and extra corrosion protection, allowin
