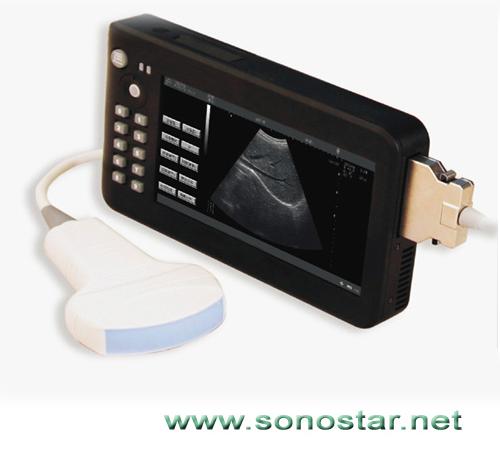

Upad-2 Tablet Palm Ultrasound B Scanner

We are offering upad-2 tablet palm ultrasound b scanner.
the system adopts a truly original approach. The images displayed by the system are crystal clear, stable and with high resolution due to adopting the latest techniques, such as continuous dynamic variable aperture, automatic multi-stage focusing, tgc, dynamic filtering, image edge enhancement, frame correlation, 256 gray scales image display, wide dynamic range and dynamic broadband with low noise preamplifiers, logarithmic compression etc.
the system has multi-probe connector, which can use convex, linear, micro-convex probe etc.
this is versatile ultrasound diagnostic system with excellent performance and compact structure. Even with strong functions, it has user-friendly interface and is easy to operate.
1. Five modes of image display: b, b/b, b/m, m, and 4b. In the m- or b/m- mode, four kinds of sweep speed of image display, 2s 4s 6s and 8s, are provided.
2. Multi-step display magnifications, depth change, zoom and scroll control.
3. The images displayed by the system are crystal clear, stable and with high resolution due to adopting the latest techniques, such as continuously variable aperture, automatic multi-stage focusing, tgc, dynamic filtering, image edge enhancement, frame correlation, 256 gray scales image display, wide dynamic range and wide-band low noise preamplifiers, logarithmic compression etc.
4. It supports the measurements of distance, circumference, area, volume and fetal weight, as well as the automatic calculation and direct presentation function, including the fetal age and due date, heart rate etc. It supports the measurements of distance, circumference, area, volume, heart rate, heart velocity, fetal age, expected date of childbirth and fetal weight due to different formula selected in the setup item, etc. And the calculated result would be presented automatically in the result area.
5. 192 frames of cine-memory and 1024 frames of permanent flash memory.
6. Realized read-write function through usb connection and sd connection.
7. This system supports the read-write in bmp form or dicom form.
8. Through the special-purpose image gathering software, this system implements the real-time image upload to the computer.
9. Image reversing: up/down, left/right and black/white.
10. Adjustments of total gain, brightness and contrast; wide range multi-frequency are available.
11. Acoustic output can be controlled.
12. It supports the variety's probe and four kinds of scan center frequency as well.
13. Puncture guidance.
14. It supports the colored surface, the ultrasonic area pseudo-color. Preset: hospital name, date, time, image format etc.
