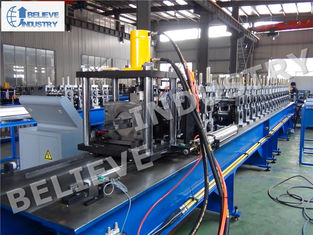

Upright Rack Roll Forming Machine, Brand Name : Believe Industry

We are offering upright rack roll forming machine.
Description:
this upright rack forming machine mainly has column forming machine and crossbeam forming machine, etc. The main components of the rack forming machine are decoiler, feeder and punching machine, roll former, cutter, hydraulic pump station, product table, and control cabinet, etc.
technical parameters - upright rack machine
raw material carbon steel, galvanized steel, q235
material thickness 1.5-2.5mm
material width depend on specific profile
diameter of shaft 76mm
material of shaft 45# steel
material of rolls
gcr15 over quenching hrc 58-62°
main power 15kw
forming speed 15-20mmin
forming station 18 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
