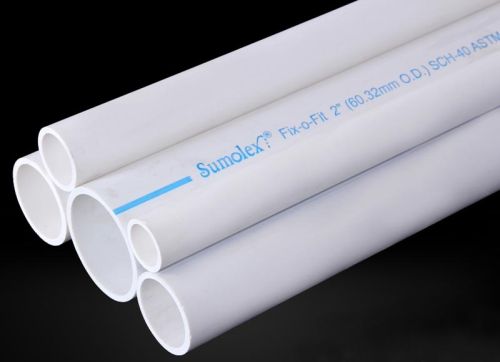

Upvc pipes, Application : Plumbing

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The company is a prominent Manufacturer and Supplier of high-quality UPVC Pipes. The UPVC Pipes, we offer are manufactured using the reliable components. UPVC Pipes, we provide are used for various plumbing solutions. Our UPVC Pipes are designed to provide easy and long-lasting sanitary solutions. Highlights Long-lasting propertiesAnti-corrosiveStandard dimensions

View More Details

Send Enquiry

Product Details

U-PVC Pipes In Schedule 40

ASTM D–1785 Standard Dimensions

Nominal Bore		Nominal Outerside Diameter	Wall Thickness	Working Pressure
(Inch)	(mm)	(mm)	(mm)	Mpa	Psi
1/2	12.5	21.34 ± 0.10	2.77 ± 0.51	4.14	600
1/3	20	26.67 ± 0.10	2.87 ± 0.51	3.31	480
1	25	33.40 ± 0.13	3.38 ± 0.51	3.1	450
1 ¼	32	422.16 ± 0.13	3.56 ± 0.51	2.55	370
1 ½	40	48.26 ± 0.15	3.68 ± 0.51	2.28	330
2	50	60.32 ± 0.15	3.91 ± 0.51	1.93	280

Download Detail File : Click Here

U-PVC Pipes In Schedule 80

ASTM D–1785 Standard Dimensions

Nominal Bore		Nominal Outerside Diameter	Wall Thickness	Working Pressure
(Inch)	(mm)	(mm)	(mm)	Mpa	Psi
1/2	12.5	21.34 ± 0.10	3.73 ± 0.51	5.86	850
1/3	20	26.67 ± 0.10	3.91 ± 0.51	4.76	690
1	25	33.40 ± 0.13	4.55 ± 0.53	4.34	630
1 ¼	32	422.16 ± 0.13	4.85 ± 0.58	3.59	520
1 ½	40	48.26 ± 0.15	5.08 ± 0.61	3.24	470
2	50	60.32 ± 0.15	5.54 ± 0.66	2.76	400
