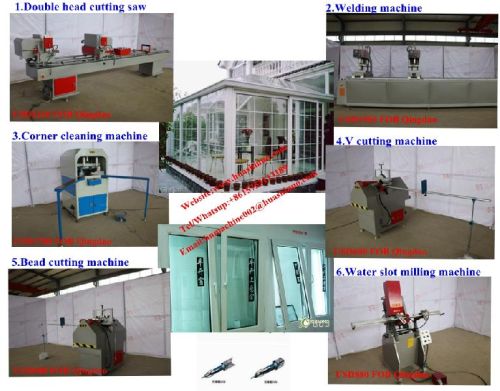

UPVC Window Making Machine

Double head cutting saw machine for pvc profile
pvc & upvc window door fabrication machine
model no.: sjz2-400*3500
equipment feature
1 this machine is used for processing the pvc profiles at angles of -45â°,90â°,45â°.
2 the swaying stable feeder is adopted.
3 the pneumatic driving system is used in profiles clamping and cutting.
4 convenient operation.
5 the circular rail with linear bearing is optional.
Standard equipment
1 horizontal pneumatic clamping set
2 full protection of the blade
3 tct saw blade d.400mm
technical parameter:
1 power: 380v 50hz
2 motor rate:â 2*1.5kw
3 saw blade diameter:î¦400mm
4 motor rotary speed:â 2800r min
5 working air pressure:â 0.5-0.8mpa
6 air consumption :100lmiin
7 cutting width:100mm
8 cutting length:450-3500mm
9 overall dimension:4000*1000*1450mm
