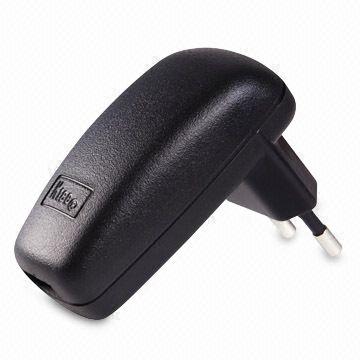

Contact SupplierWe are offering 5w usb chargers. Input:
input voltage: 90~264vac
frequency: 47-5060-63hz
input current: 0.15a(max) 100240vac
inrush current: 50a max 100vac at max load
60amax 240vac at max load
leakage current: 0.25ma max
output:
output voltage: 12vdc max
output current: 1a max
full complies with cec level v, meps v, eup 2011
over voltage protection
over current protection
at 110~200% of lo and auto-recovery
electronic short circuit protection
operating temperature 0~40°c free convection
operating humidity 10-90% rh non condensing
sea level non-operating temperature -20~80 c
safety standards
information technology equipment
iecen60950-1,ul60950-1,csa c22.2 no.60950-1-03,bg4943,k60950
certificates and approvals:
cb,gs,ce,uk,tuv,ul,ccc,fcc,pse, c-tick,kc
emi emission
radiation test & conduction test: en55022fcc part 15.
Harmonic test: en61000-3-2
flicker test: en61000-3-3
ems immunity:
esd test: en61000-4-2
rs test: en61000-4-3
eft test: en61000-4-4
surge test: en61000-4-5
cs test: en61000-4-6
dip test: en61000-4-11
