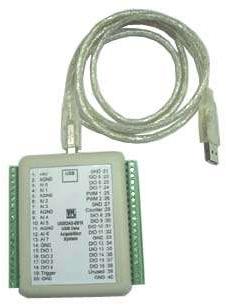

USB DATA ACQUISITION SYSTEMMODEL : USBDAS-0816The USBDAS-0816 is the lowest cost USB data acquisition system which provides eight 12-bit analog inputs, 16 digital I/O lines, two programmable pulse-width output channels, and one 16-bit counter channel. Analog sampling rate is up to 32 ksamples/s for all 8 channels, with single channel up to 13 ksamples/s. The package comes with all free USB cable, screw driver, device driver, DLL, LabVIEW driver, dot net wrapper class, rich examples and free ready-to-run DASTest&Log testing and data logging software. This USBDAS is the best choice of the multifunction USB data acquisition system in the low cost USB DAS group. Our economic USBDAS proves to give a smooth performance, it does not hang or freeze the computer. This USB data acquisition system can be used in industry process control and monitor, academic education project, hobby project and other low budget projects. User can create their own software to integrate USBDAS-0816 or just use our free ready-to-run DASTest&Log data logging and control software.FEATURESUSB 2.0/1.1 Full Speed InterfaceCE compliantUSB Bus Powered8 Single-Ended, 12-Bit Analog Inputs0-4.050 V Analog Input RangeUp to 32 kSamples/Sec Throughput with Single Channel Up to 13k Samples/Second for Streaming Mode.Supports Both Scan Mode and Continuous Streaming ModeData AcquisitionOne Dedicated Trigger Line for Streaming Mode Data Acquisition.Two programmable 10-bit PWM Outputs (3kHz- 333kHz)16 Bi-Directional Digital I/O Lines (125HZ update rate)One 16-Bit Counter240 bytes EEPROM Reserved for User DataMultiple USBDASs Can Be Connected On Same Computer.Simultaneous Streaming from Multiple USBDASs Possible.Works with Windows 98SE, ME, 2000, or XP, recommend winxp for better performance.Free USB CableFree ScrewdriverFree Downloadable Device Driver, Programming API (DLL), LabVIEW Drivers, VB Examples, ActiveX example, dot net example, C/C++ example.FREE Standalone Ready-to-Run DASTest&Log Software for Testing, Data Logging, Data Playback and Simple Analysis.30 Days Money Back Guarantee, 6 Month Warranty and Trade In Policy.Approximately 3.5" x 3.375" x 1.125" (9cm x 8.5cm x 3cm)Industrial Temperature RangeDASTest & LogThe free DASTest&Log is a standalone ready-to-run software that can be used to test the USBDAS device and log analog input’s data and read back logged data for basic analysis. With this software, user can browse through all the features in USBDAS, such as read single analog channel, multiple analog channels, streaming analog input data continuously for display and log into file with or without external trigger, set DIO (digital I/O) directions and read/write DIO states, program PWM output frequency and duty cycle, read counter etc. It’s ideal for people who do not want to write their own software.
