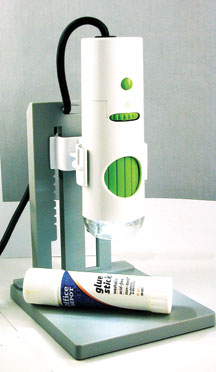

USB Digital Microscope

USB Digital 10-200X Video Microscope Features:
High speed USB 2.0 interface.
200X magnification.
Viewing and capturing the magnified image of your specimens right on your computer
Screen with VGA (640x480) or SXGA (1280x1024) resolution.
Active pixel technology for sharp image and accurate color reproduction.
The build-in 6 White-light LED give adjustable illumination and ensure that magnified images are clear and bright.
Auto exposure, auto gain control and auto white balance for optimum image.
Software controllable parameters (resolution, color, brightness, saturation).
High quality lens for true to life undistorted color image.
Bus powered with low power consumption – ideal for portable equipment.
Hardware snap button.
Light weight and portable
10x-200x magnification that captures on monitor
or notebook computer instantaneously
Easy focus and light intensity adjustments
Very affordable, competitive price
Quality product
One year limited warranty covers any factory defect.
Specifications:
FCC(USA) and CE certificates
Image Sensor: 1/4” Color CMOS image sensor
Effective Pixels: 1280 (H) x 1024 (V) pixels
Signal Output: Serial data for USB standard compliant 2.0
Gain Control: Auto Gain Control (AGC)
White Balance: Automatic
Magnification: 200X
Snap Shot Mode: Hardware/Software controllable
Power Source: 5VDC through USB port
Power Consumption: 110mA (AVG)
O/S: Windows XP SP2 and VISTA
System Requirements:
Pentium 4 Class CPU
128 MB of system RAM, or more
One USB 2.0 port or above
VGA system with at least 16bit color support
UVC: Windows XP SP2 and VISTA
Some Applications:
Skin Check
Scalp Check
Industrial Inspection e.g. Printing Circuit
Board(PCB)inspection,
Electronics device inspection
Visual Assistance
Printing Inspection
Textile Inspection
Paper money Inspection
Jewelry Inspection
Science Learning
Digital camera use
We ship worldwide from USA or direct from our factory in Taiwan
