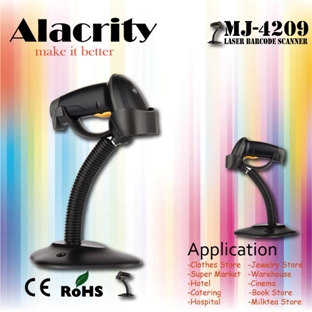

USB Laser Barcode Scanner, Brand Name : Alacrity

We are offering usb laser barcode scanner.manufacturer usb laser barcode scanner
mj-4209 is industrial-grade barcode reader. By enhancing the technology,with the best scanning light source now mj-4209 can read some bad-qualified ,damaged and dirty bar code .it is characterized by stable performance and durability.with industrial housing protection,even in noisy and industrial environment, high volume buzzer can meet the requirement on confirming each scanning .
feature:
·upto ip54 industrial level ,waterproof , dustproof .
·manual trigger/continuous scan/auto-sense(for choice),very comfortable operating.
·quick decoding capability with duzzy fuzzy information processing system
·support remote software update
·upto 10,000 hours laser life , french press key with life of 3 million pressing times .
·support multi-interface: rs232/usb/kb,
·ergonomic design offer comfortable operation and enhance the working efficiency
7.decode zone
technical parameter
light source
650 (visible laser)
scan model
single line bi-directional
scan speed
200±2 line/sec
resolution
0.10mm(pcs0.9)
width of scan
30mm scanner window, 220mm 200mm
depth of scan
0-250mm(0.33mm.pcs 90%)
corner
30°
elevation
65°
deflection
55°
decode capacity
upc/ean,upc/ean(include complement code), code128,ucc/ean128,code39,code 39full ascii,code128full ascii,codabar,interleaved 2 of 5,code93,msi,code11,isbn,issn,china post
code,etc
interface
rs232,ps2,usb
print contrast
20% minimum
bit error rate
1/5 million
prompt
buzzer indicator
scan model
handheld / auto-sense
physical parameter
size
l×w×h:165mm×63mm×87mm
weight
129g
material
abs+pc
cable standard
straight:2.5m
electrical parameter
voltage
5v
working current
85ma
standby current
36ma
laser security
accord with national level2 laser security standards
emc
ce & fcc doc compliance
environment parameter
working temperature
0°c-45°c
storage temperature
-20°c-60°c
humidity
relative humidity 5%-95% (non-condensing)
environment luminance
max.5,000 lux ( flsorescence)
anti-knock
1.8m fall to cement
user environment
working temperature 0°c-45°c/32°f-104°f
storage temperature: -20°c-60°c
relative humidity:5%-95%(non-condensing)
anti-shock design :withstand 1.8m drops
ambient light immunity: immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight.
regulatory
electrostatic discharge: certified to ±15kv air discharge and ±8kv of contact discharge
emi/rfi : fcc part 15 class b,european union emc directive,taiwan emc,ce
laser safety: cdrh class ii,iec class 2
environmental protection: certified to rohs directive 2002/95/eec
standard configuration
manual, product certification, stand(optional),usb cable
warranty
the mj4209 is warranted against defects in workmanship and materials for a period of 2 years (24 months) from date of shipment, provided that the product
remains unmodified and is operated under normal and proper conditions. See full warranty for details.
. Roll (tilt): controlled by rotating the wrist clockwise or counterclockwise
. Pitch: controlled by dropping or raising the wrist
. Skew (yaw): controlled by rotating the wrist from left to right or vice versa
. Standard configuration-usb cable
why do you choose our products?
1.maximum productivity at an affordable price
handheld laser bar code scanner form us deliverys performance features at an acceptably affordable price to made you buying decision easier than ever before .from the checkout line to the back room ,our products help you make the most of your application-specific solution in a variety of ways including :transform your retail ,transportation&logistics and industrial application.
2.transform you retail
transportation&logistics and industrial application adding bar code scanning to your application-specific solution is convenient and flexible .you can configure the bar code scanner by scanning the bar code we offer to realize your wanted function in retail,transportation&logistics and industry.
