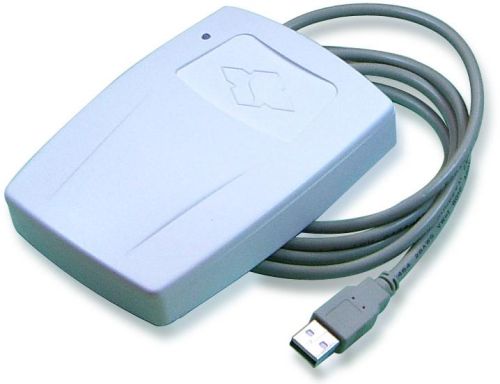

USB Pcsc Interface Desktop Reader

Mr790 series, based on nxp pcd or compatible pcd, is the high performance usb pcsc interface desktop reader. The reader supports series ic cards according to iso14443a, iso14443b, iso15693; various contactless ic card under international standard; especially the contactless cpu cards under iso14443-4. Meanwhile the reader is available to pass emv2000 and pboc 2.0 and be authenticated by many laboratorial certifications---visa wave & pay pass (by fime) and the bank card test center. There are 3 sam card slots in the reader which support sam cards compliant with iso7816 (t=0 and t=1). The reader supports card-reset of various communication rate; ppss operation after card-reset and sam operation of various communication rate.
qualifications:
• pcd: nxp rc500, rc531, rc632, rc400
• working frequency: 13.56mhz
• rf standard: iso14443a, iso14443b, iso15693
• operating distance: 100mm (mifare one, typical distance)
• sam card slot: 3 slots, (supported iso7816 t=0 and t=1)
• interface: usb pcsc
• power supply: dc5v
• power consumption: 0.9w
• dimension: 123mm × 88mm ×25mm
• weight: about 100g
• operating temperature: -25 ~ +85 ℃ (-77 ~ +185°f)
• storage temperature: -40 ~ +125 ℃ (-104 ~ +257°f)
• pc software: ptranswin
• sdk&program: vc, vb, c++ builder, delphi, power builder
