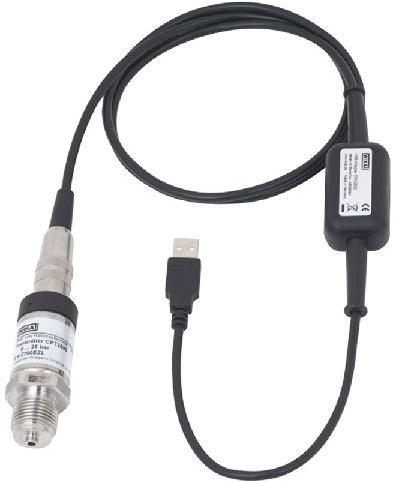

USB Pressure Transmitter

Extensive application possibilities The CPT2500 USB pressure transmitter is suitable for connection to any PC with a USB port, via the CPA2500 USB adapter. For the USB adapter there are stainless steel pressure transmitters available with measuring ranges up to 1,000 bar. The USB adapter automatically detects the measuring range of the currently connected pressure transmitter and ensures a highly accurate pressure measurement. Functionality The measurement interval for pressure recording can be set in the range of 1 ms ... 10 s. With a recording interval of more than 5 ms the following data is recorded in addition to the current measured value: the mean value over the recording interval the maximum and minimum value during the recording interval Thus pressure peaks within the overall recording interval can be very easily identified. It is also possible to set start and stop conditions for the recording. In this way it is possible to detect pressure peaks with a resolution of up to 1 ms.
