Contact SupplierWe are offering 13.56 Mhz Usb Rfid Reader Writer Mifare.
Overview :

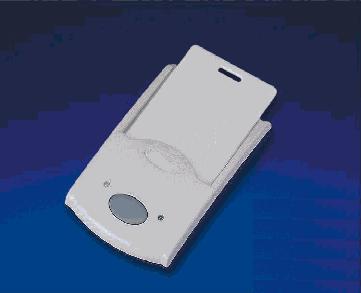

The Mifare RFID Reader/Writer (GAO 233002) is an optimized device which can support both Mifare Class and Mifare PRO standard cards. With the encoder software, the reader allows you to define your own security keys and write them to the cards. This advanced Reader/Writer is widely used in applications including Access Control, Parking Systems, Prepaid Parking, Ticketing, Time and Attendance, Admission Control and POS. In addition, this Reader/Writer is waterproof and dustproof.
Application :
-Access Control, Parking Systems, Prepaid Parking, Ticketing, Time and Attendance, Admission Control, POS operator, etc.
Technical Specifications :
Display
None uses computer monitor to view data
Power requirements
5 V DC 100 mA
Communications Interface
RS232, or USB
Baud rate
19,200 bps N, 8, 1
Frequency
13.56 MHz.
Read Write Distance
2 cm maximum
Memory
32 KB.
Technical Certificates
CE, FCC
Dimensions
L 65 mm x W 100 mm x H 24.7 mm
Weight
to 115g.
Housing
ABS
Waterproof and dustproof
IP40
Operating Temperature
-0 C to 60 C
Storage Temperature
-20 C to 70 C
Humidity
10% to 90 % relative
Multi-Detection
Yes
