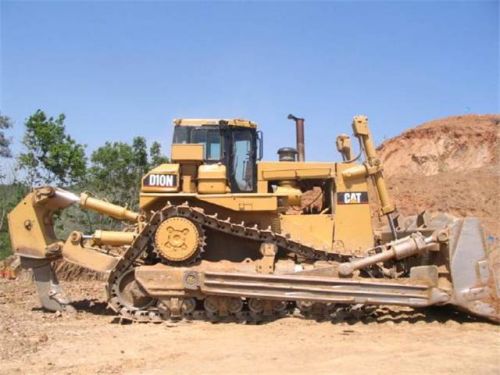

Contact SupplierWe are offering used caterpillar bulldozer,
1. Dimensions
a. Length w blade: 7760 mm
b. Width over tracks: 3300 mm
c. Height to top of cab: 4240 mm
d. Length of track on ground: 3870 mm
e. Ground clearance: 615 mm
f. Length wo blade: 5590 mm
2.undercarriage
g. Track gauge: 2550 mm
h. Standard shoe size: 610 mm
3. Engine
make: caterpillar
model: 3412
gross power: 520 hp 387.8 kw
displacement: 27 l
aspiration turbocharged
4. Operational
operating weight: 57410 kg
fuel capacity: 1023 l
hydraulic fluid capacity: 108 l
5.transmission
type: powershift
number of forward gears: 3
number of reverse gears: 3
max speed - forward: 12.5 kmh
max speed - reverse: 15.6 kmh
6. Undercarriage
ground pressure: 119.1 kpa
ground contact area: 4.7 m2
standard shoe size: 610 mm
number of track rollers per side: 8
track gauge: 2550 mm
7.hydraulic system
relief valve pressure: 18600 kpa
pump flow capacity: 408 lmin
standard blade
width: 4860 mm
height: 2050 mm
capacity: 17.2 m3
cutting depth: 674 mm
dimensions
8. Payment and shipment
in good working condition
price: negotiable
locate in shanghai,china
package: in bulk or by container
deliver in 1-7 days after confirmation
payment:tt 30% deposite ,70% before loading
9.after-sale service & warm tips
(1)、we can arrange all for the shipment if you need once we made a deal.
(2)、we have a very professional team to solve all problems or buy some quick-wear parts for you before loading.
(3)、all photos and datas of products revealed here is based on truth of machines.
(4)、all machines are imported by normal way with complete procedures.
